1400Kg 45mm Solid Electric Braked Trailer Caravan Axle + Handbrake Axles 64" -77"

1400KG 45MM SQUARE SOLID COMPLETE ELECTRIC BRAKED AXLE
WITH HAND BRAKE LEVERS
AXLE LENGTHS 64" - 77" (For Longer axles SKU: 175736491700)

AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)
D40/NP300/PATHFINDER (6/114.3 PCD, 1/2" STUDS AND NUTS)
F100/JEEP (5/127 PCD, 1/2" STUDS AND NUTS) (poa)


THIS AXLE USED BY MANY TRAILER, CARAVAN AND CAMPER TRAILER MANUFACTURES AUSTRALIA WIDE.

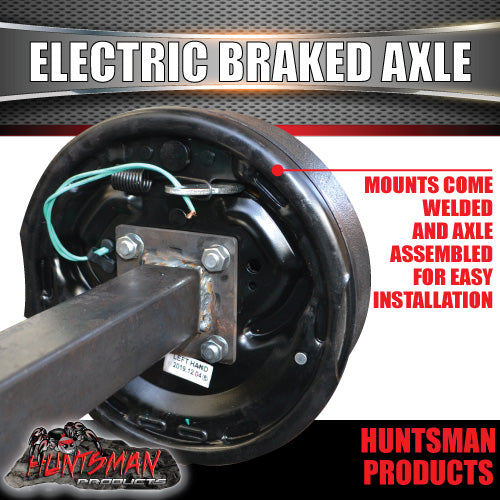

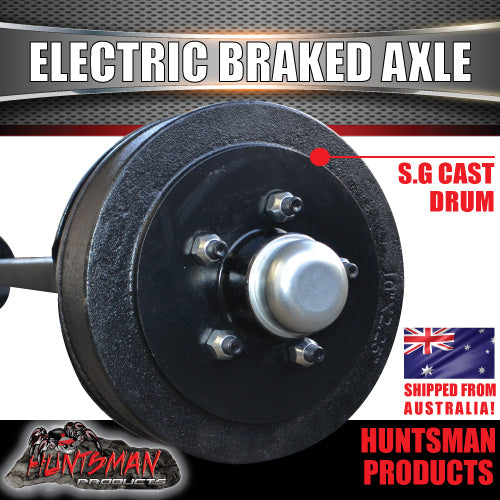

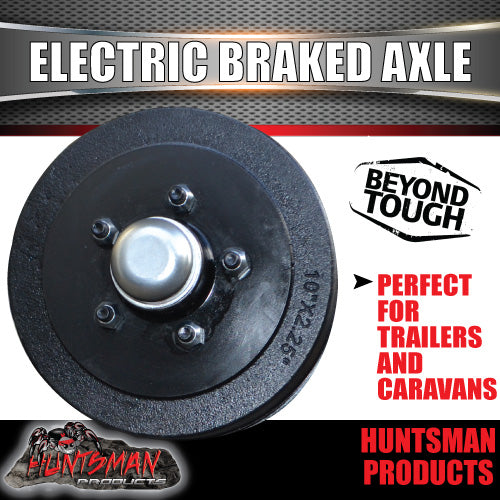

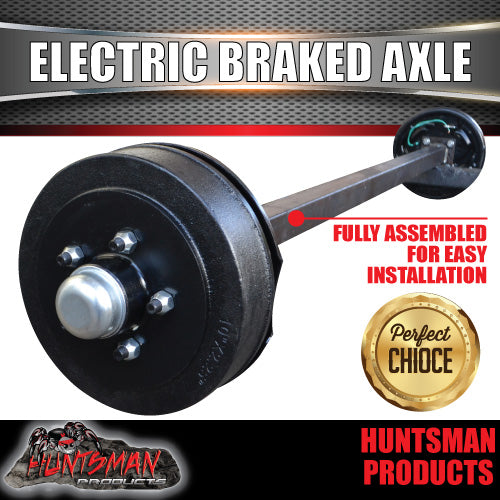

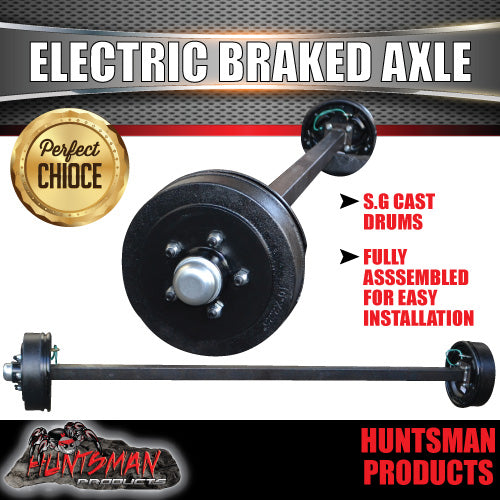

Axle comes complete as pictured

SLIMLINE BEARINGS FITTED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12710)

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON THE LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
