Natural 1400Kg Hydraulic Drum Braked Trailer Caravan 45mm Axle, 64" - 77" Long

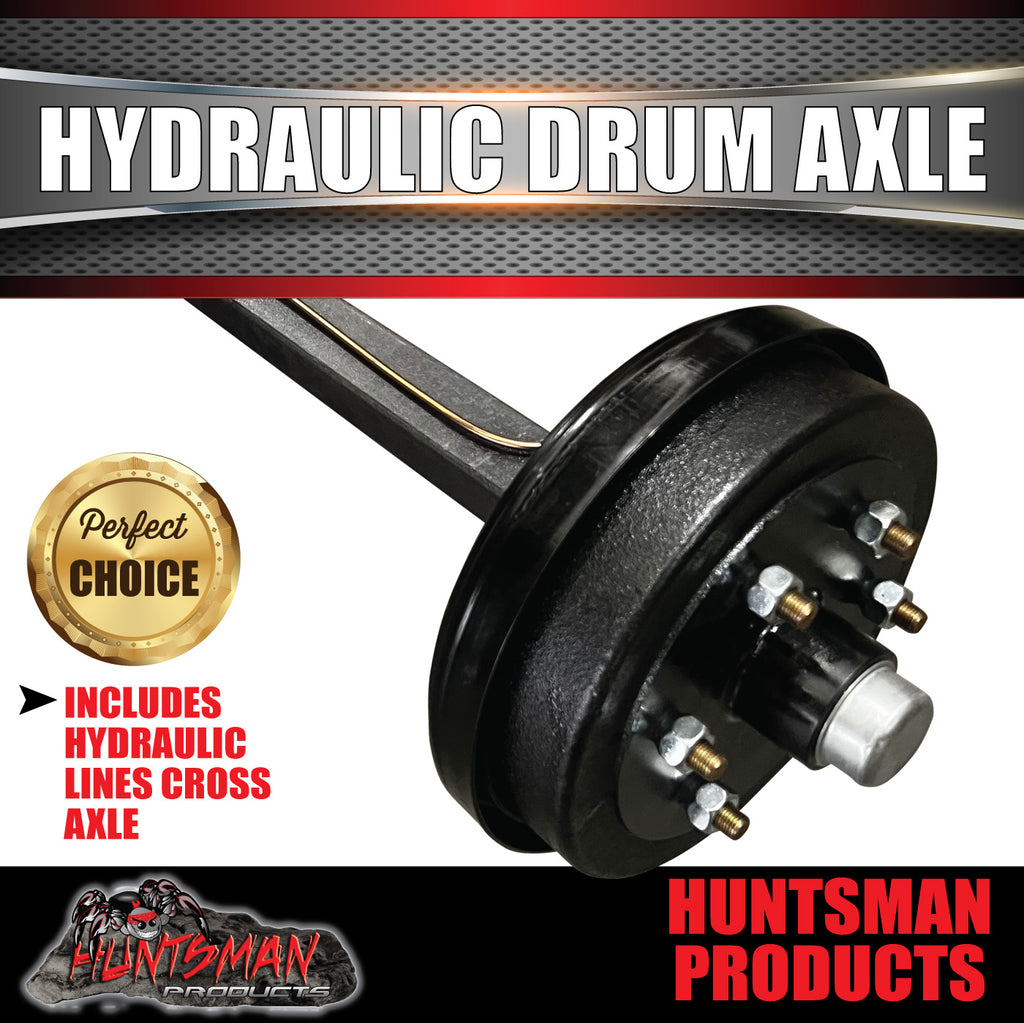

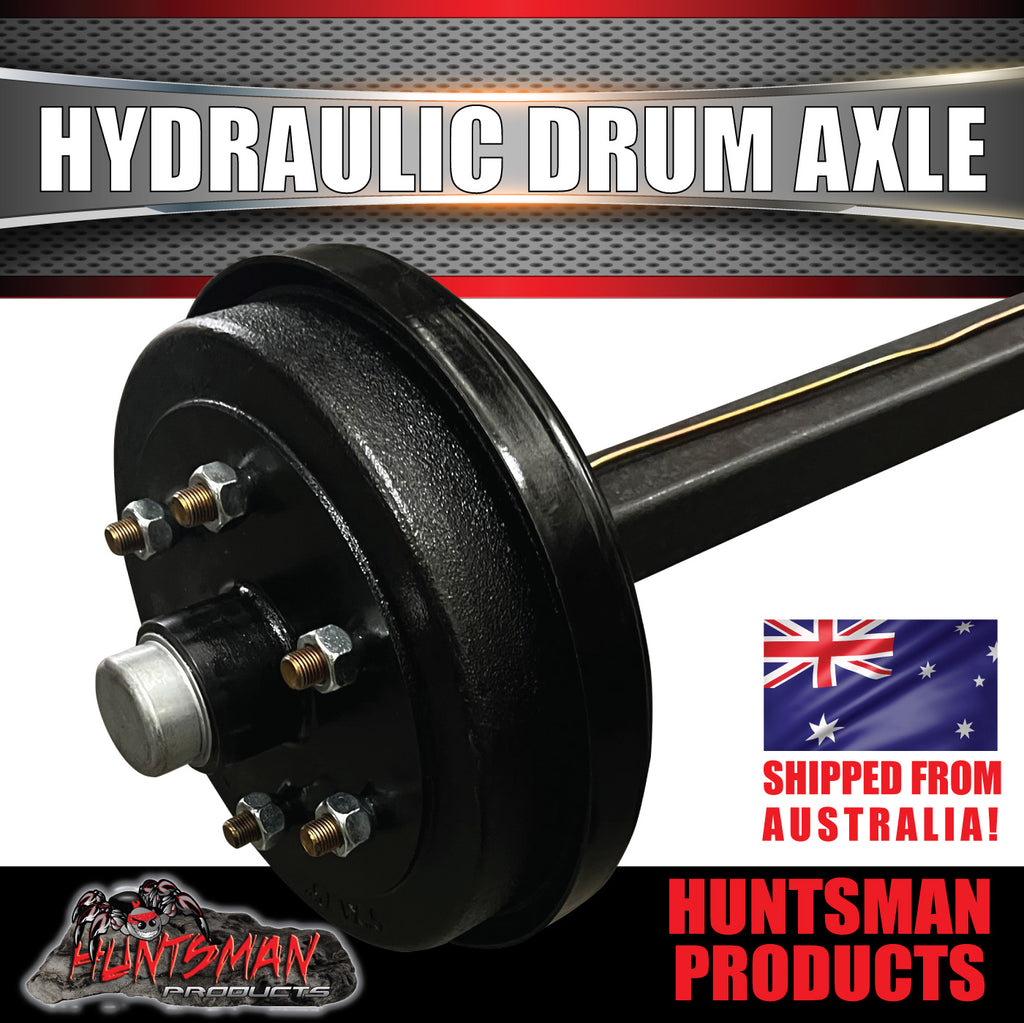

1400KG NATURAL COMPLETE HYDRAULIC DRUM BRAKED AXLE
SOLID 45MM SQUARE AXLE
64" - 77" AXLES (for longer axles SKU: 364273365798 )


AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

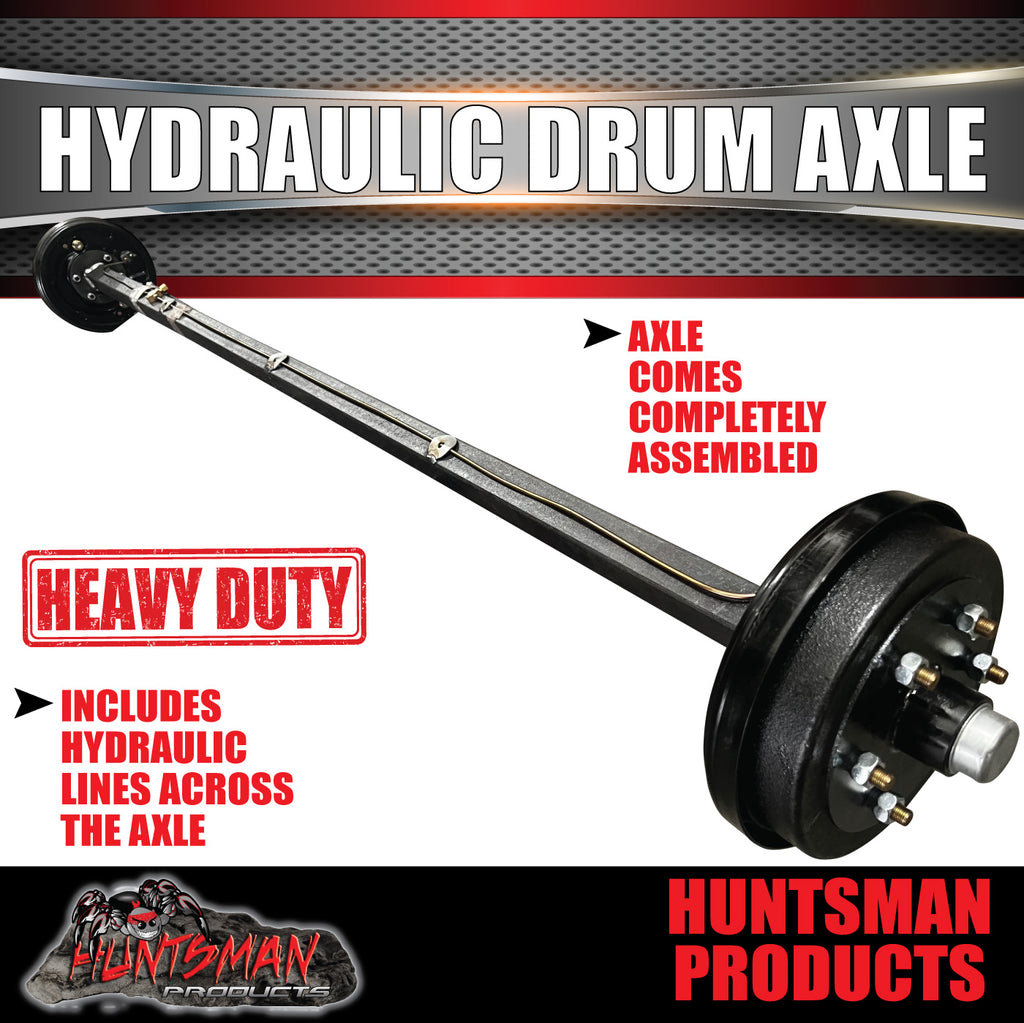

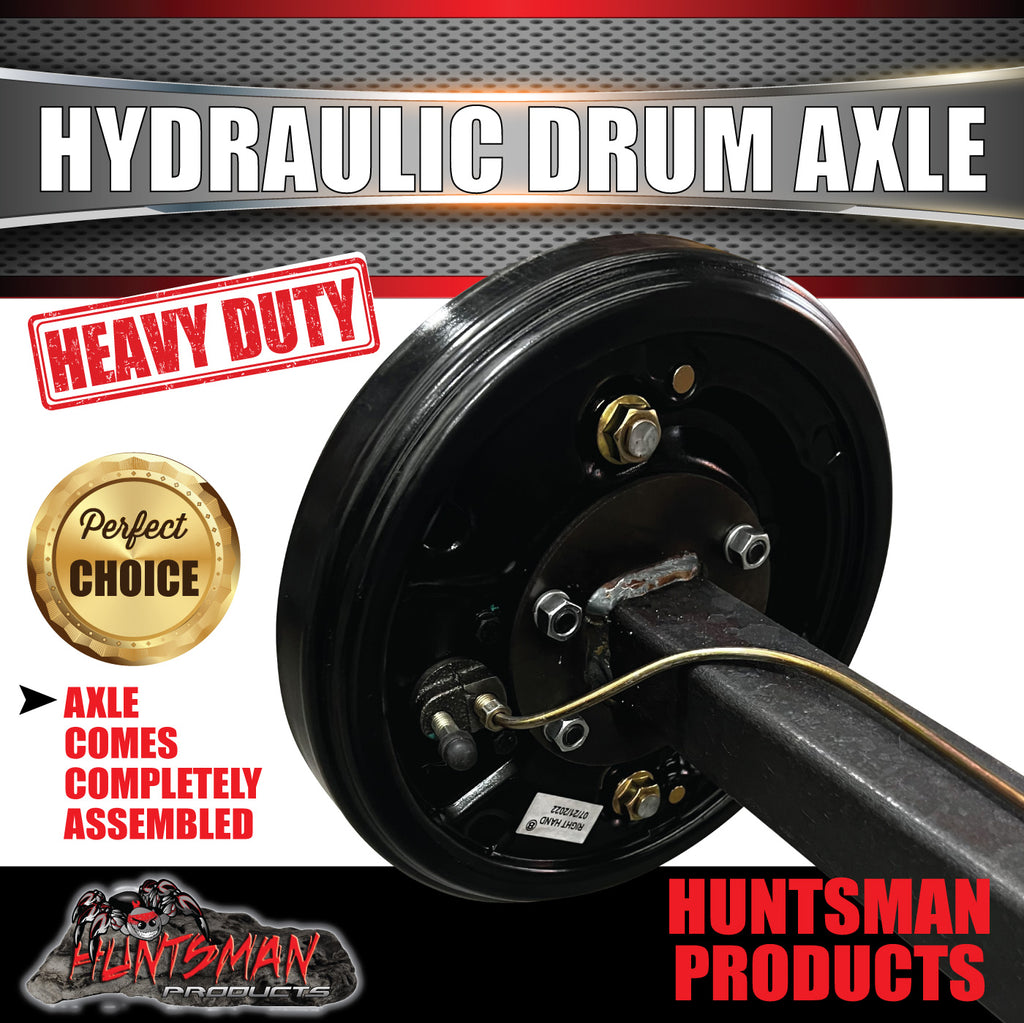

AXLE COMES COMPLETELY ASSEMBLED

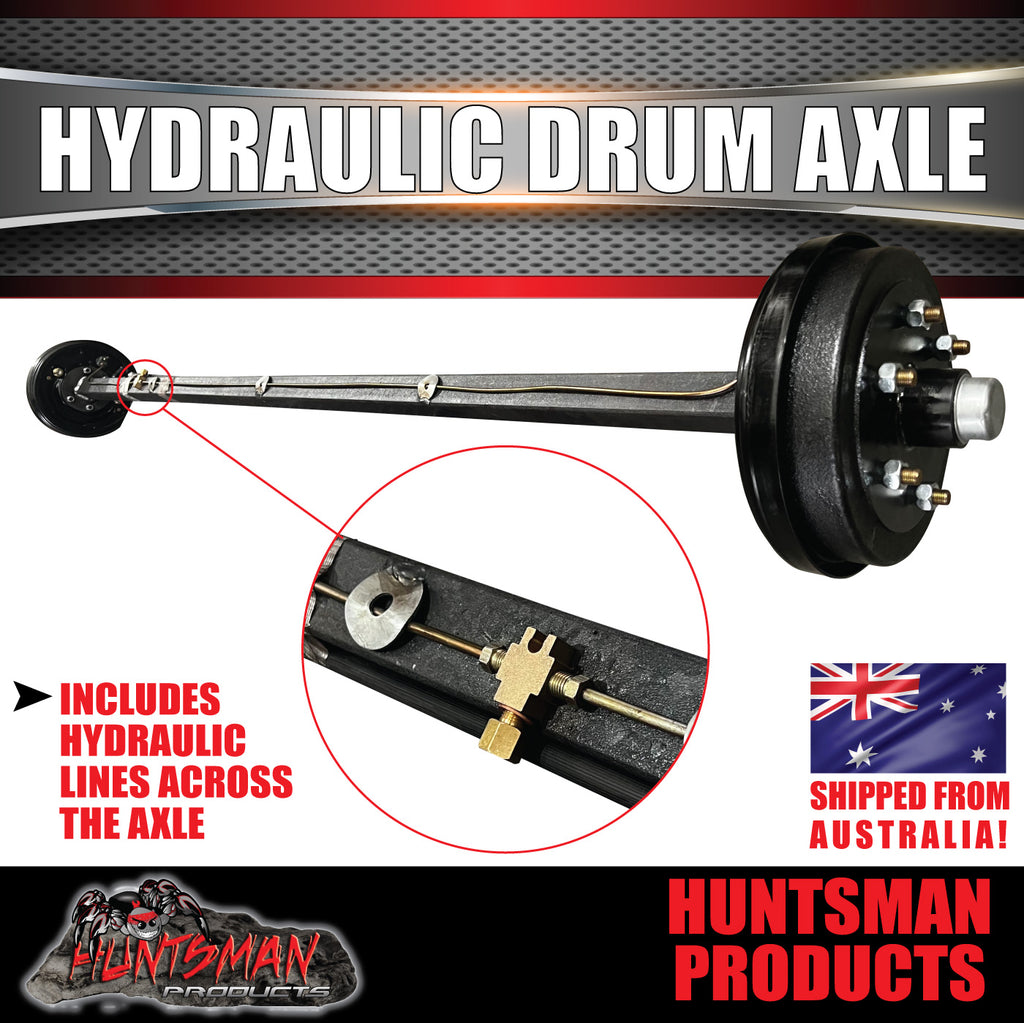

AXLE COMES PLUMBED UP WITH BUNDY LINE, T PIECE AND FLEXI HOSE
AUTOMOTIVE GREASE USED ON BEARINGS
AXLE HAS WELDED WASHERS TO SUPPORT BUNDY LINE


SLIMLINE BEARINGS INSTALLED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12749)


OPTIONS AVAILABLE FOR THIS AXLE
UPGRADE JAPANESE MANUFACTURED BEARINGS +$50 (CLICK ON LINK BELOW)
2" OR 4" DROP AXLES $295 EACH AXLE (DROP AXLES APPROX 5 DAYS TO ENGINEER)
GULLWING AXLE UPGRADE +$180

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
