Natural 1400Kg Hydraulic disc Braked Trailer Caravan 45mm Axle, 78" - 96" Long

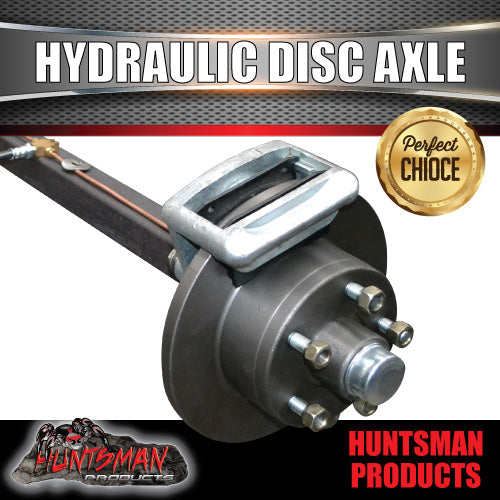

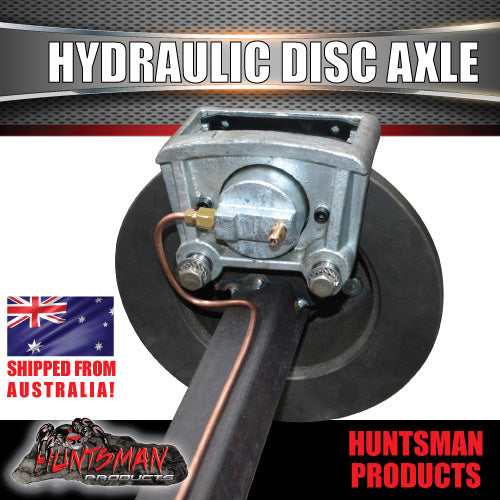

1400KG NATURAL COMPLETE HYDRAULIC DISC BRAKED AXLE
SOLID 45MM SQUARE AXLE
78" - 96" AXLES (for shorter axles SKU: 360703774222)


AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $105 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$105 12" DISCS

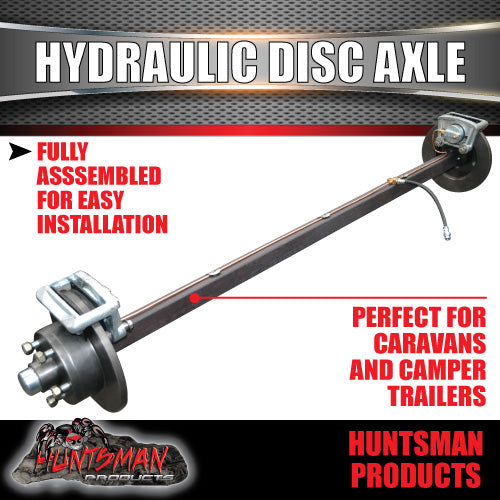

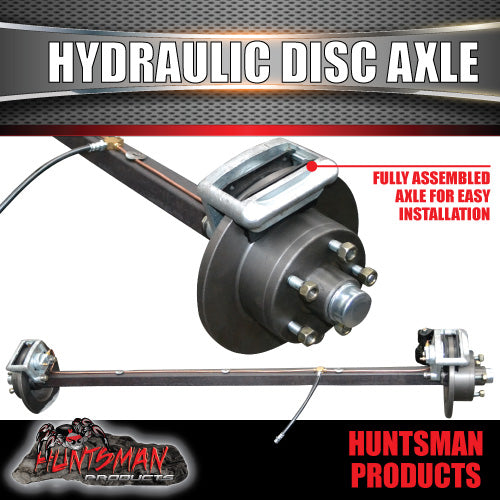

AXLE COMES COMPLETELY ASSEMBLED
AXLE COMES PLUMBED UP WITH BUNDY LINE, T PIECE AND FLEXI HOSE
CALIPERS COME WITH STAINLESS STEEL PISTONS
COMES FITTED WITH HUNTSMAN PRODUCTS BRAKE PADS
AUTOMOTIVE GREASE USED ON BEARINGS

SLIMLINE BEARINGS INSTALLED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12749)

OPTIONS AVAILABLE
UPGRADE TO JAPANESE BEARINGS $50.0 (CLICK ON LINK BELOW)
2.5" OR 4" DROP AXLE $295
GULLWING AXLE $180

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
