6 Stud 10" Trailer Electric Brake Kit + 45MM Sleeve Stub Axles Japanese Bearings

10" ELECTRIC DRUM BRAKE KIT WITH JAPANESE BEARINGS

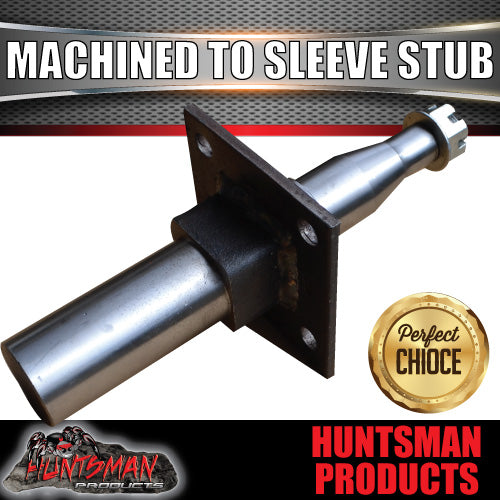

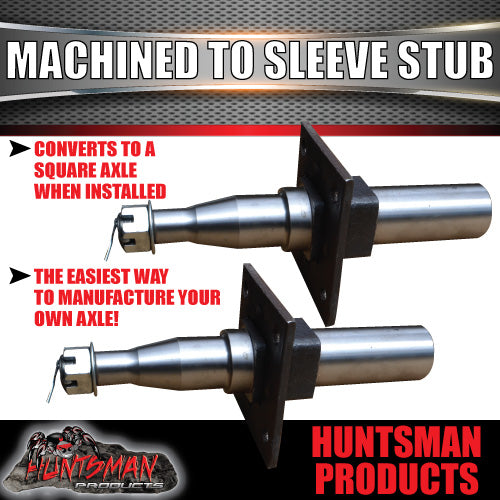

WITH 45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION
RATED 1400KG

STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
D40/NP300/PATHFINDER (6/114.3 PCD, 1/2" STUDS AND NUTS)

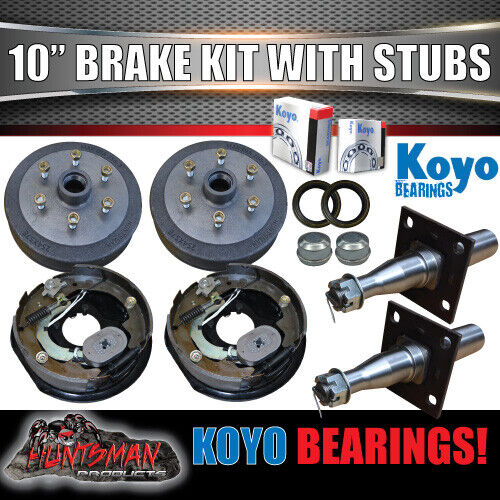

FULL KIT INCLUDES
2X 45MM X 250MM SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION
1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 10" HUB DRUMS (AVAILABLE IN 6 STUD LANDCRUISER 6/139.7 PCD OR 6 STUD NISSAN D40 NAVARA 6/114.3 PCD )
S.G CASTING (MUCH STRONGER THEN GREY IRON)
Drums come with cups already inserted.

2X S/L JAPANESE BEARING SETS
2X INNER BEARINGS ID:34.9MM (L68149)
2X OUTER BEARINGS ID:22MM (L12710)
2X OUTER BEARING CUPS (already inserted)
2X INNER BEARING CUPS (already inserted)
2X SLIMLINE REAR SEALS
2X DUST CAPS

if ordering an electric braked kit off us please look at our brake controllers which will be combined in your postage
tekonsha IQ item: 170774956808
tekonsha P3: 362897452478
