10" Galvanised 5 Stud Boat Trailer Mechanical Disc Brake & coupling kit.

SKU : 180743782680-5
$375.00

Available



Details

10" BOAT TRAILER GALVANISED MECHANICAL DISC BRAKE KIT
WITH COMPLETE COUPLING KIT

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $115 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$115 12" DISCS

FULL KIT INCLUDES
2X GALVANISED MECHANICAL BRAKE CALIPERS WITH MOUNTING BOLTS AND BRAKE PADS ALREADY INSERTED
2X GALVANISED DACROMET 10" MECHANICAL DISCS WITH HOLDEN LM OR FORD S/L SIZE BEARINGS & MARINE SEALS. COMES WITH WHEEL NUTS TO SUIT STUD PATTERN PROVIDED
2X BEARING SETS WITH MARINE SEALS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X MARINE SEALS SEALS, 2X DUST CAPS) discs will come with cups inserted
2X MECHANICAL DISC BRAKE FLANGES (available in 39mm round, 40mm square 45mm round, 45mm square)

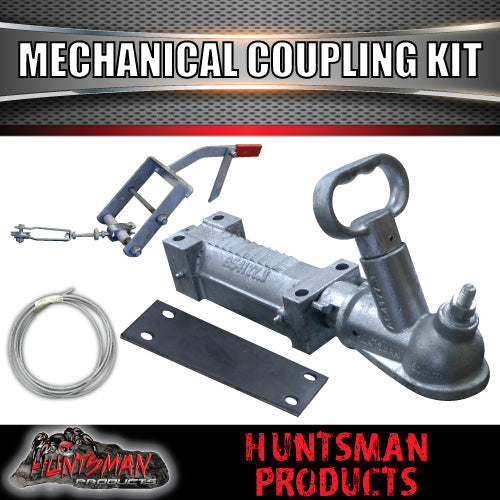

1X 2000KG GALVANISED OVERRIDE 50MM BALL COUPLING
1X MARINE MECHANICAL BRAKE LEVER. AVAILABLE TO SUIT 100MM OR 75MM WIDE DRAW BAR. 100MM WILL COME STANDARD UNLESS ADVISED OTHERWISE (A Frame mechanical base plate style available upon request)
1X 8 METRES 4MM BRAKE CABLE (PLEASE LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2X CABLE CLAMPS
1X 4 HOLE WELD ON PLATE
4X HIGH TENSILE BOLTS AND NYLOC NUTS



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (click on link below)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"


INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
WIDTH OF AXLE: 39MM ROUND, 40MM SQUARE, 45MM ROUND OR 45MM SQUARE (45mm mounts can be used for 50mm axles)

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

6 STUD LANDCRUISER
PCD: 6/139.7
Stud Thickness: 1/2"

5 Stud Landcruiser
PCD: 5/150
Stud Thickness: 9/16"

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
