10" Trailer Caravan Mechanical Disc Brake Kit. Natural S.G Cast discs

10" TRAILER MECHANICAL DISC BRAKE KIT

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $80 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$80 12" DISCS

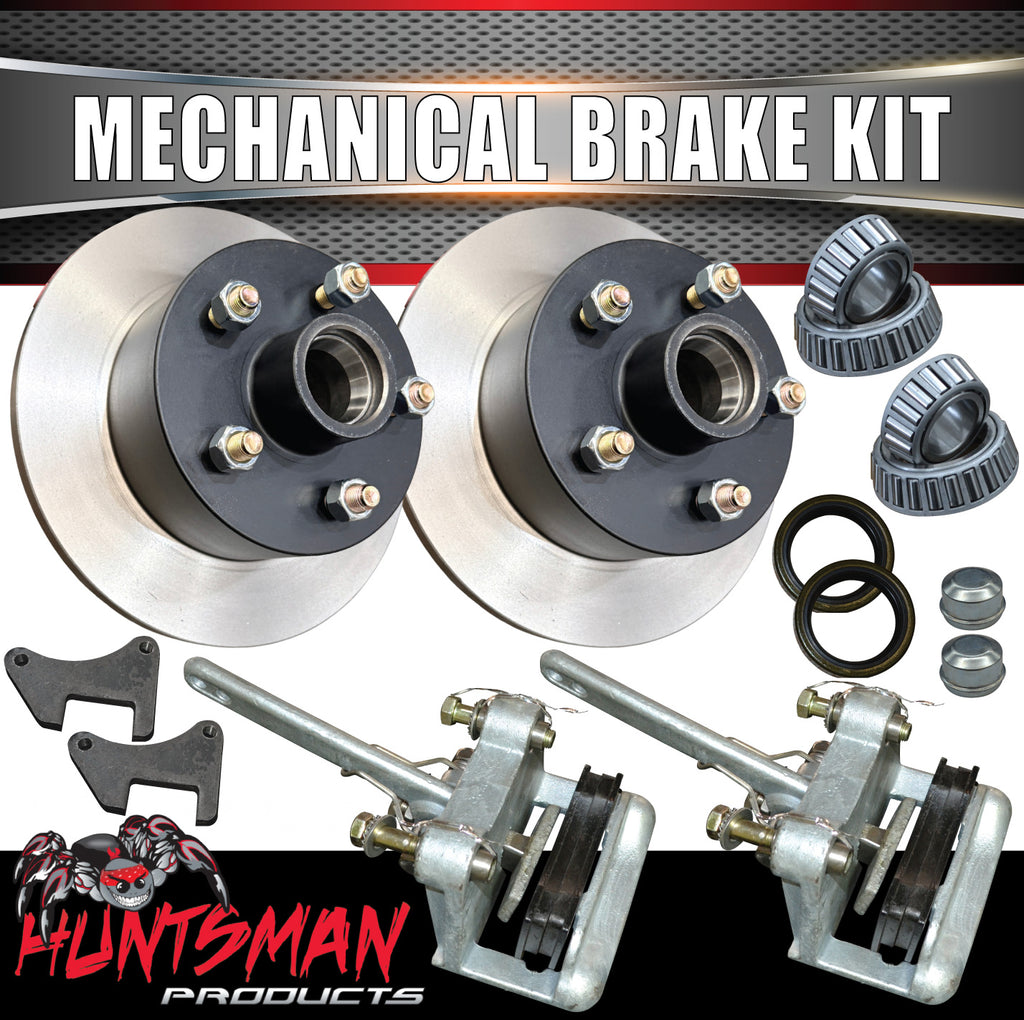

FULL KIT INCLUDES

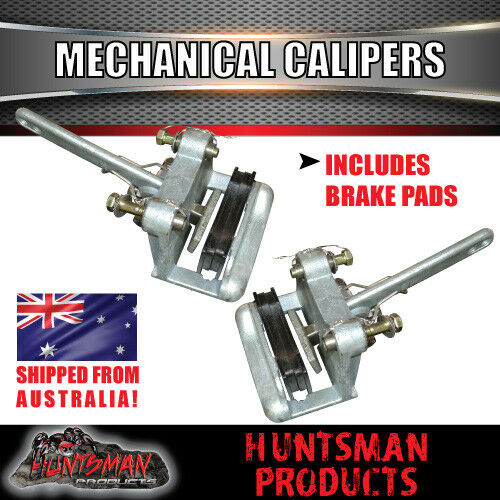

2X GALVANISED MECHANICAL BRAKE CALIPERS WITH MOUNTING BOLTS AND BRAKE PADS ALREADY INSERTED

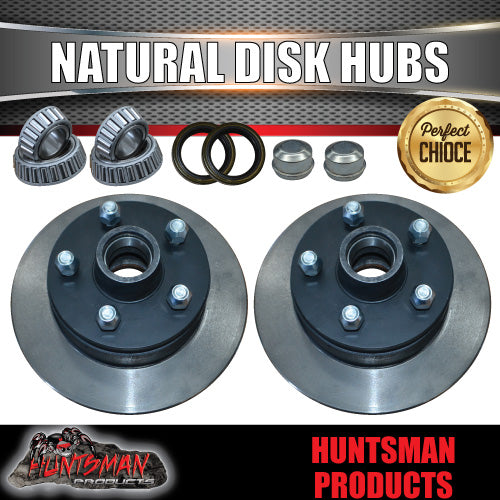

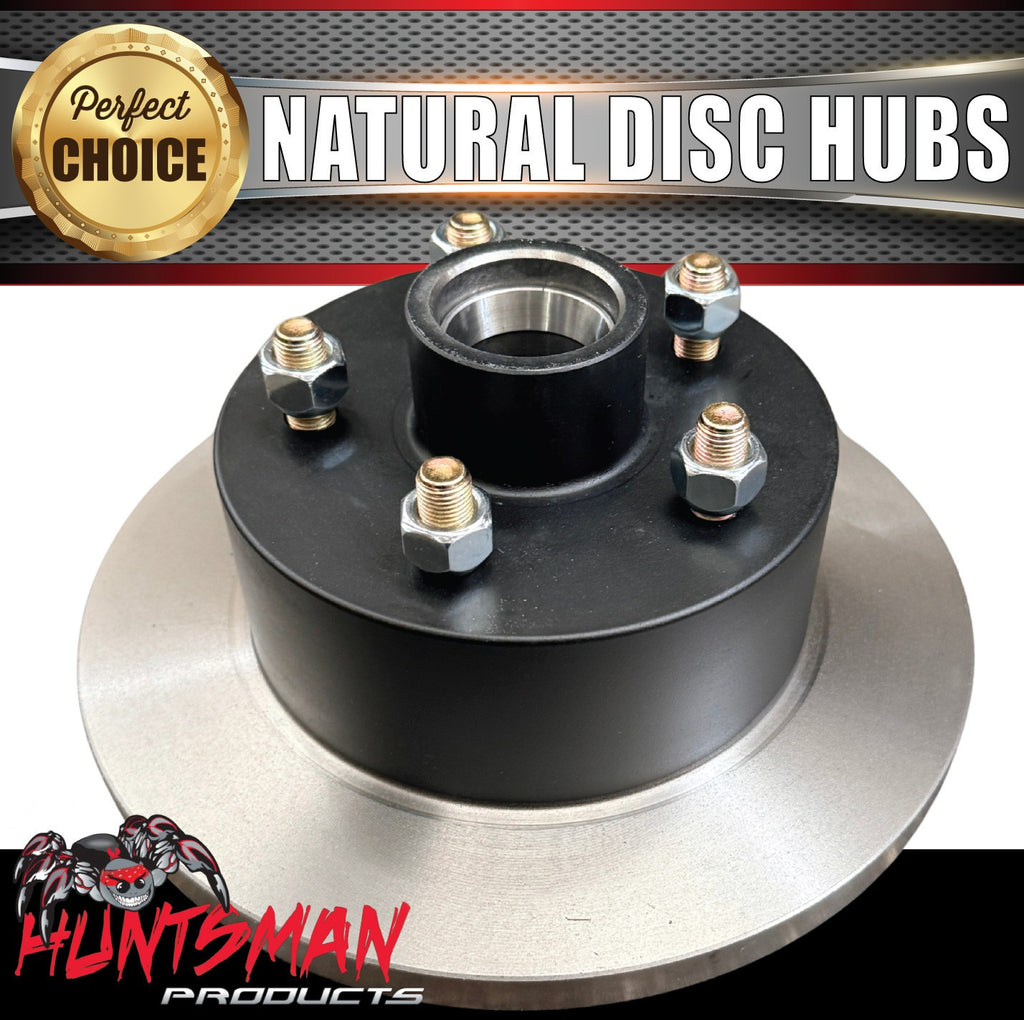

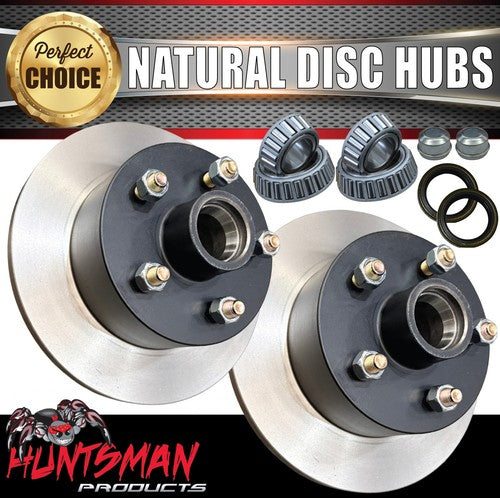

2X NATURAL FINISH 10" MECHANICAL DISCS WITH HOLDEN LM OR FORD S/L SIZE BEARINGS. COMES WITH ALL WHEEL NUTS TO SUIT STUD PATTERN PROVIDED

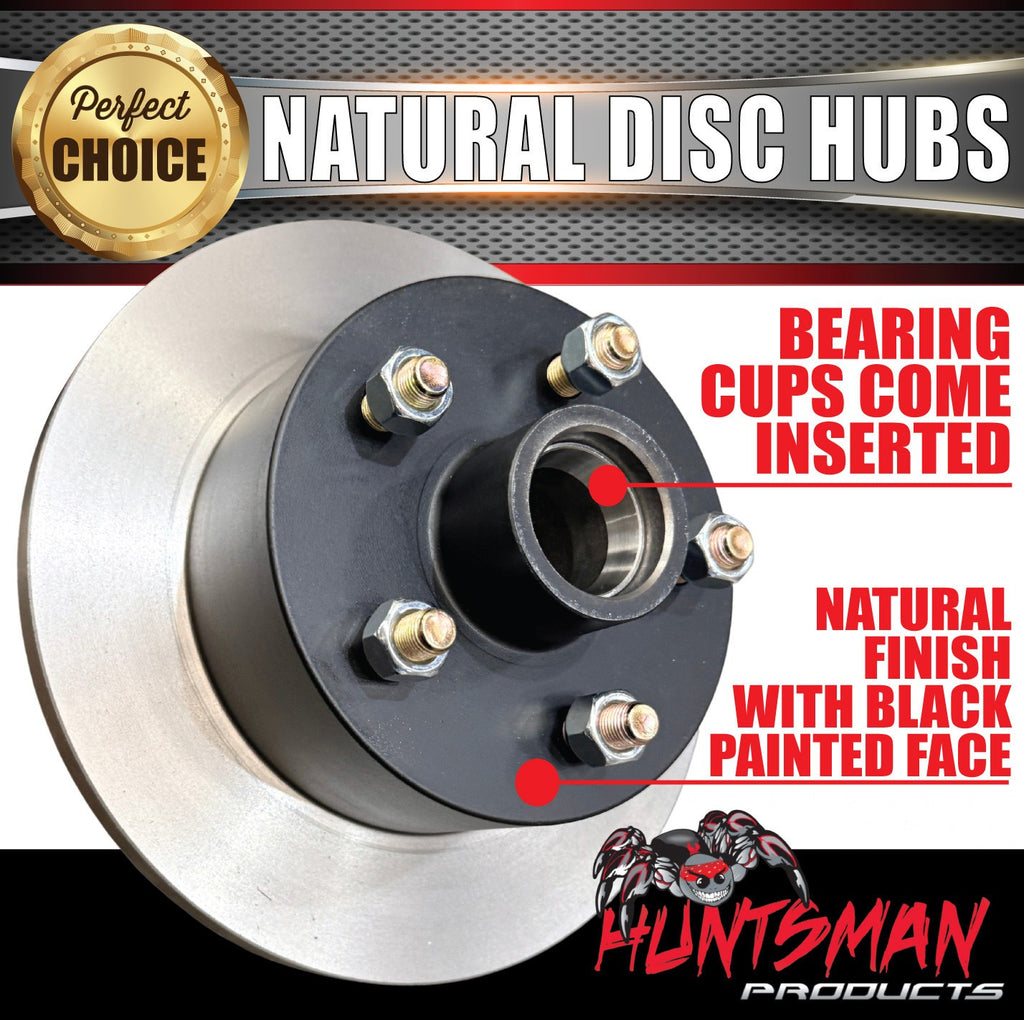

2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X MARINE SEALS SEALS, 2X DUST CAPS) Bearing Cups will be inserted

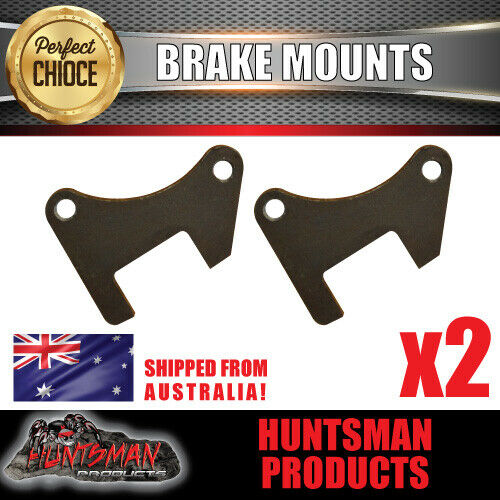

2X MECHANICAL DISC BRAKE FLANGES (available in 39mm round, 40mm square 45mm round, 45mm square)

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (click on link below)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
WIDTH OF AXLE: 39MM ROUND, 40MM SQUARE, 45MM ROUND OR 45MM SQUARE (45mm mounts can be used for 50mm axles)

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

6 STUD LANDCRUISER
PCD: 6/139.7
Stud Thickness: 1/2"

5 Stud Landcruiser
PCD: 5/150
Stud Thickness: 9/16"
