Details

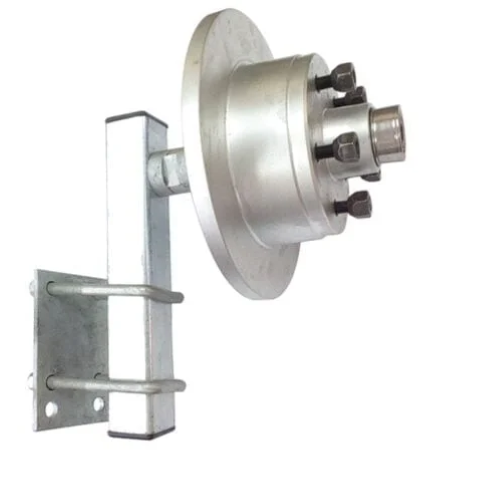

Trailer Rescue Kit including disc hub and bearing kit
Slimline SL Stub (suited for FORD bearings)
available in Ford, Commodore, Holden HT and Landcruiser Patterns
How Does The Rescue Kit Work?
The Huntsman Products Rescue Kit gives a combination of a spare wheel holder, spare hub or disc with pre greased bearing kit (should a bearing collapse or fail) or a very handy dolly or jockey wheel using your spare tyre across sand or soft grounds.
STUD PATTERNS AVAILABLE
FORD 10" DISC (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE 10" DISC (5/120 PCD, 7/16" STUDS AND NUTS)
HQ 10" DISC (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT 10" DISC (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C 12" DISC (6/139.7 PCD, 1/2" STUDS AND NUTS) +$50
5 STUD L/C 12" DISC (5/150 PCD, 9/16" STUDS AND NUTS) +$50
IN THIS KIT:
1X GLAVANISED 45MM STUB AXLE INC CASTLE NUT AND SPRING PIN
1X GALVANISED SPARE WHEEL STEM
2X GALVANISED U BOLT AND SUPPORT PLATE
1X GALVANISED DACROMET DISC HUB INC SLIMLINE SL BEARING KIT
ALL NUTS AND WASHERS SUPPLIED
BEARING KITS INCLUDE
1X INNER BEARING ID:34.9MM (L68149)
1XOUTER BEARING ID:22MM (L12749)
1X OUTER BEARING CUP (already inserted)
1X INNER BEARING CUP (already inserted)
1X SL MARINE REAR SEAL
1X 45MM DUST CAP
HOW DO I KNOW WHICH STUD PATTERN I HAVE?
MEASURE FROM CENTRE OF ONE STUD TO THE NEXT STUD
64MM = HT HOLDEN
68MM = FORD
70MM = HQ
Kit Does Not Come Assembled
Can be mounted in various positions including Draw Bar, A Frame and Winch posts
Can be suited for 50x50, 75x50, 100x50 and 80x80mm RHS
koyo Japanese Bearings Available $25
BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $25.0 (click on link below)
CLICK HERE TO UPGRADE TO JAPANESE KOYO BEARINGS
