5 Stud 10" Trailer Electric Brake & Coupling Kit & IQ Controller Koyo bearings.

10" ELECTRIC DRUM BRAKE KIT
WITH IQ CONTROLLER AND COUPLING KIT
With KOYO Japanese Bearings


FULL KIT INCLUDES
1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 10" HUB DRUMS (AVAILABLE TO SUIT5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HQ OR 5 STUD HT)
drums made from S.G casting (Much stronger than grey iron)
drums come with cups already inserted.
2X KOYO JAPANESE BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)
2X ELECTRIC BRAKE MOUNTS (PLEASE SPECIFY THICKNESS OF AXLE eg 39MM ROUND, 40MM SQUARE, 45MM ROUND, 45MM SQUARE, 50MM SQUARE)

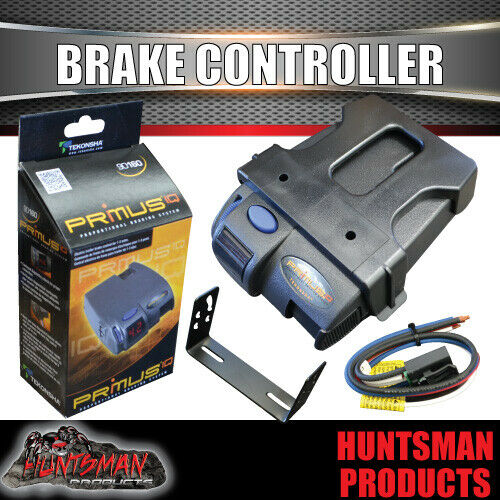

1x TEKONSHA IQ BRAKE CONTROLLER
1x 3500KG ELECTRIC 50MM BALL COUPLING WITH HANDBRAKE LEVER
4X HIGH TENSILE COUPLING BOLTS AND NYLOC NUTS
1X 4 HOLE BASE PLATE
1X 8 METRES HANDBRAKE CABLE
2X CABLE CLAMPS


INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
AXLE WIDTH


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERNS:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches
