12" ELECTRIC DRUM BRAKE KIT
WITH 50MM SOLID STUB AXLES
2000KG RATED

Stud Patterns Available
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)

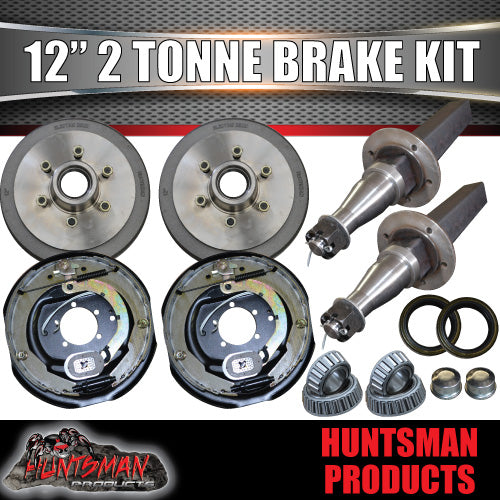

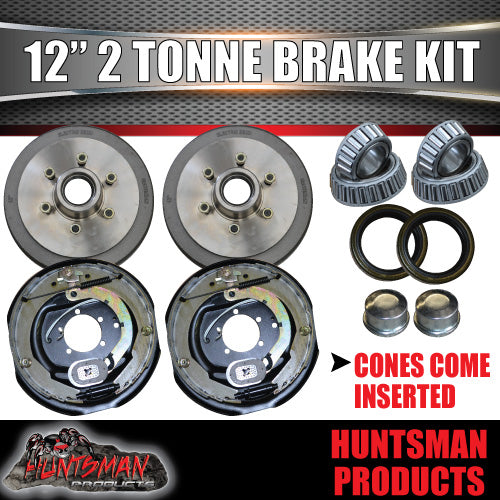

FULL KIT INCLUDES:

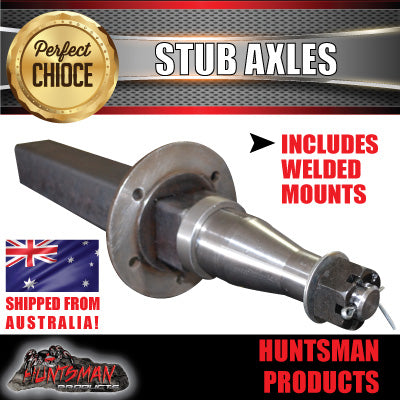

2X 50MM SOLID STUB AXLES (450MM OVERALL LENGTH) WITH ELECTRIC BRAKE MOUNTS ALREADY WELDED. ALSO COMES WITH WASHER SPLIT PIN AND AXLE NUT
1X LEFT HAND 12" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 12" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

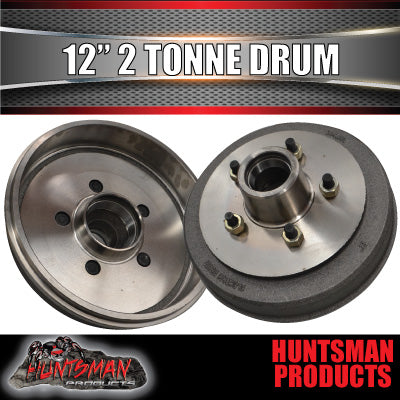

2X 12" 2 TONNE HUB DRUMS WITH CUPS INSERTED
2X 2 TONNE BEARING SETS: INNER 30210 & OUTER 15123 SUITS AL-KO
2X 63mm HUB DUST CAPS
2X 2 TONNE OIL SEALS

BEARING OPTIONS
UPGRADE TO JAPANESE KOYO BEARINGS $90 (click on link below)

 "UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"
