585mm x 300 newton gas struts & brackets. European seals

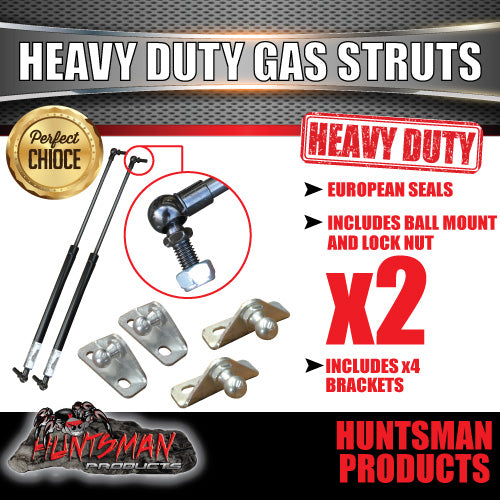

X2 585mm x 300 NEWTON GAS STRUTS
4x 13mm ball gas strut brackets

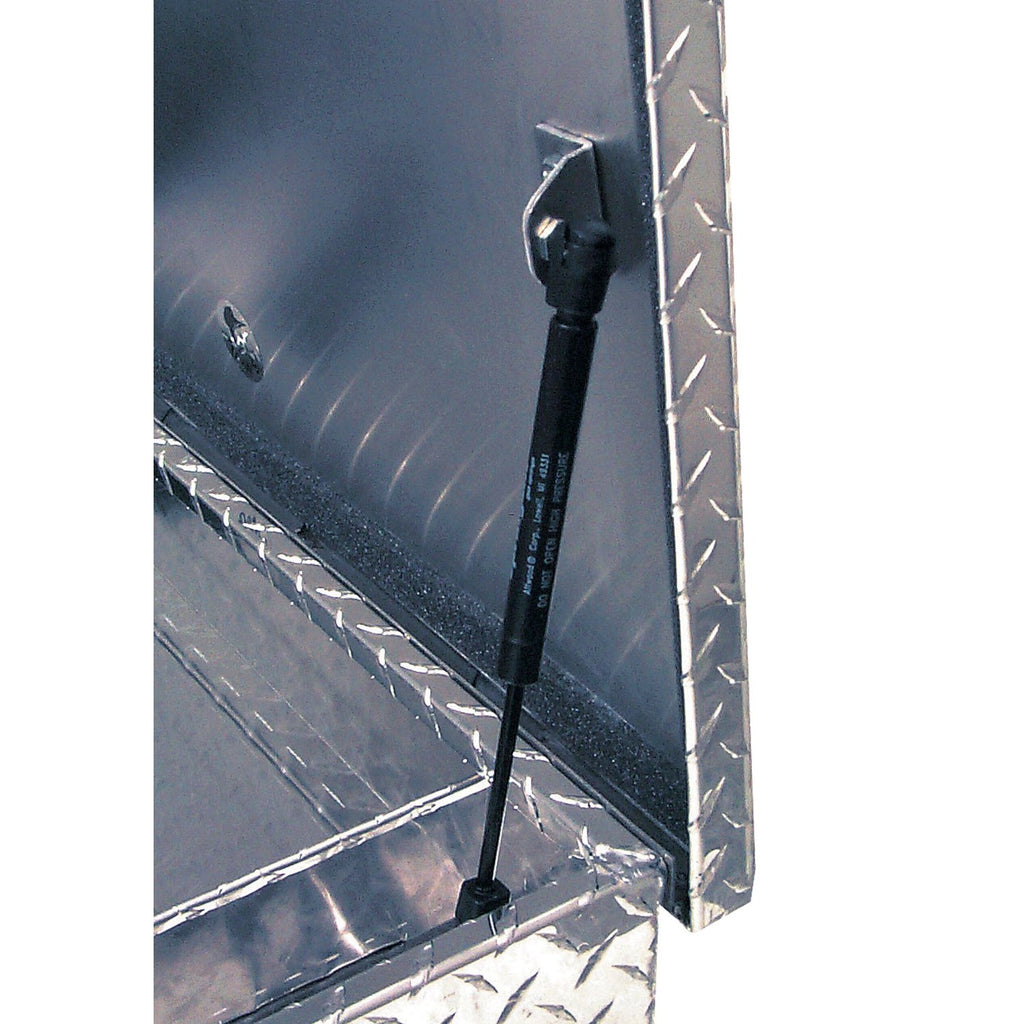

these struts are generally used under on tradesman trailer side and rear doors that are framed

lifts approx 30kg per pair
European seals

2x 300 newton x 585mm open shaft gas struts

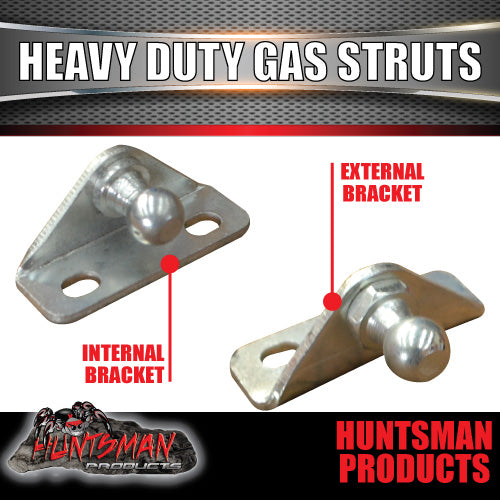

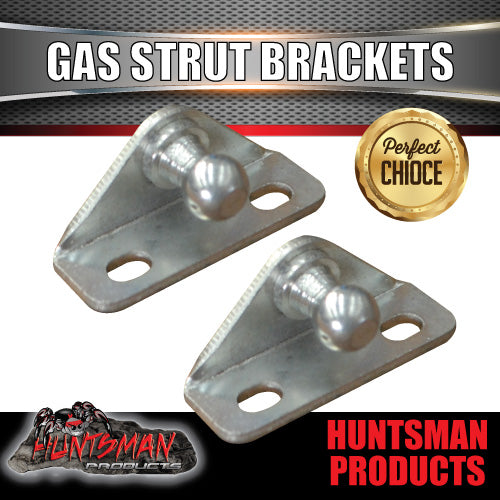

2x internal mount brackets (let us know on ordering if you require all internal or all external brackets)
2x external mount brackets (let us know on ordering if you require all internal or all external brackets)
shaft width 10mm
ball diameter 13mm

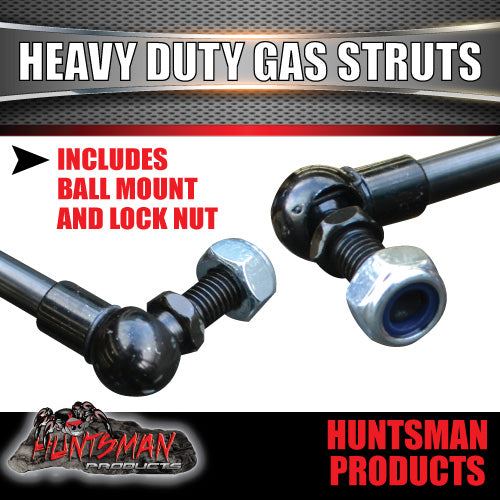

comes with mount ball bolts and nyloc nuts

STROKE LENGTH (A) MM = 260
EXTENDED LENGTH (B) MM = 585
PISTON ROD (D1) MM = 10
PISTON CYLINDER (D2) MM = 22
FORCE RANGE NEWTON = 300


What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
