8" Trailer Caravan Swing Up Jockey Wheel & 50x50mm U bolts

The all new Heavy Duty 8" Jockey Wheel
HEAVY DUTY PLASTIC OFF ROAD STYLE MOLDED WHEEL
Comes with 2x U bolts to suit 50mm x 50mm Drawer Bar or A Frame

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm a frames)
5MM FORK
PLASTIC HANDLE
CAN BE WELDED OR SUPPLIED WITH U-BOLTS
SOLID WHEELS

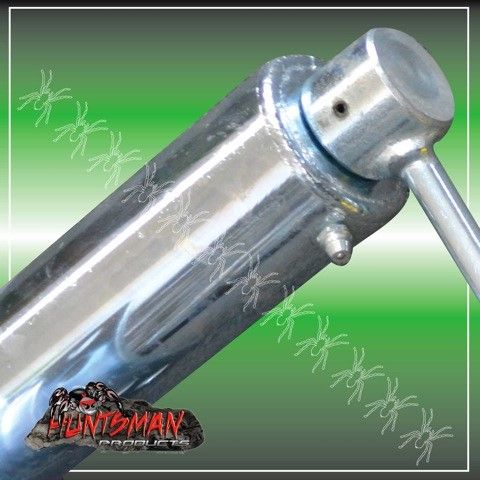

COMES WITH GREASE NIPPLE TO KEEP INTERNAL BEARINGS LUBRICATED
RATED AT 750KG (BALL WEIGHT)

height from centre of bracket to bottom of tyre
fully closed 380mm
fully extended 633mm

Height from middle of bracket to top of handle: 220mm
Overall Length closed: 600mm
Travel: 253mm

UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
