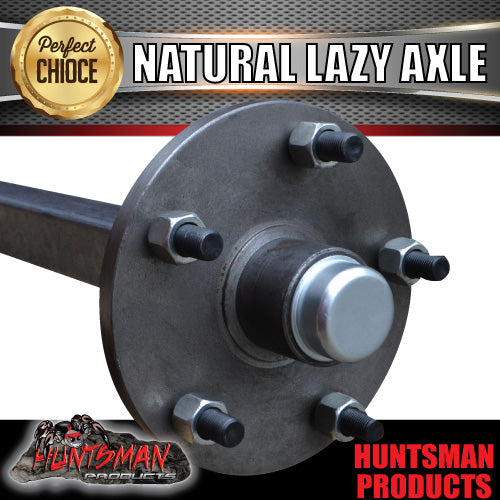

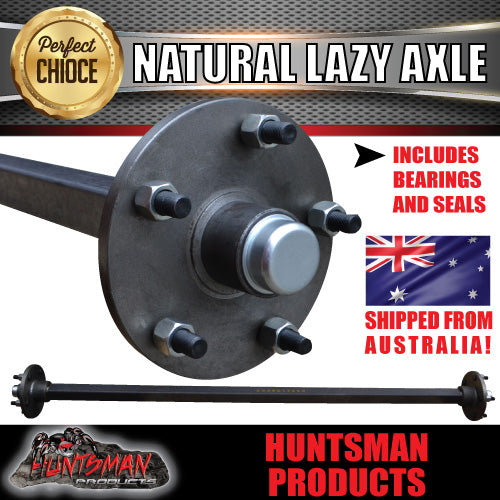

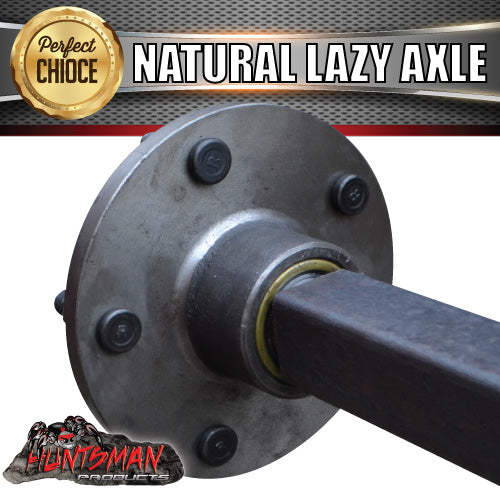

1400Kg Trailer Caravan Solid Lazy Axle 45mm Square Complete 64" - 77" Long

45MM SQUARE SOLID COMPLETE LAZY AXLE
(1400KG RATED)
NOTE: Unbraked Axles Have a Max GTM Capacity of 750KG.

AXLE LENGTHS 64" - 77" ( for longer axles SKU: 192892610392 )


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$20
6 STUD D40/NP300 (6/114.3 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD SUZUKI / F100 (5/139.7, 9/16" STUDS AND NUTS) +$20


AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)

AXLE COMES COMPLETELY ASSEMBLED
AUTOMOTIVE GREASE USED ON BEARINGS

SLIMLINE BEARINGS INSTALLED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12749)

OPTIONS AVAILABLE FOR THIS AXLE
UPGRADE JAPANESE MANUFACTURED BEARINGS +$50 (CLICK ON LINK BELOW)
2" OR 4" DROP AXLES $295 EACH AXLE (DROP AXLES APPROX 5 DAYS TO ENGINEER)
GULLWING AXLE UPGRADE +$180)
