Details
STOP/TAIL/IND/REV LAMPS

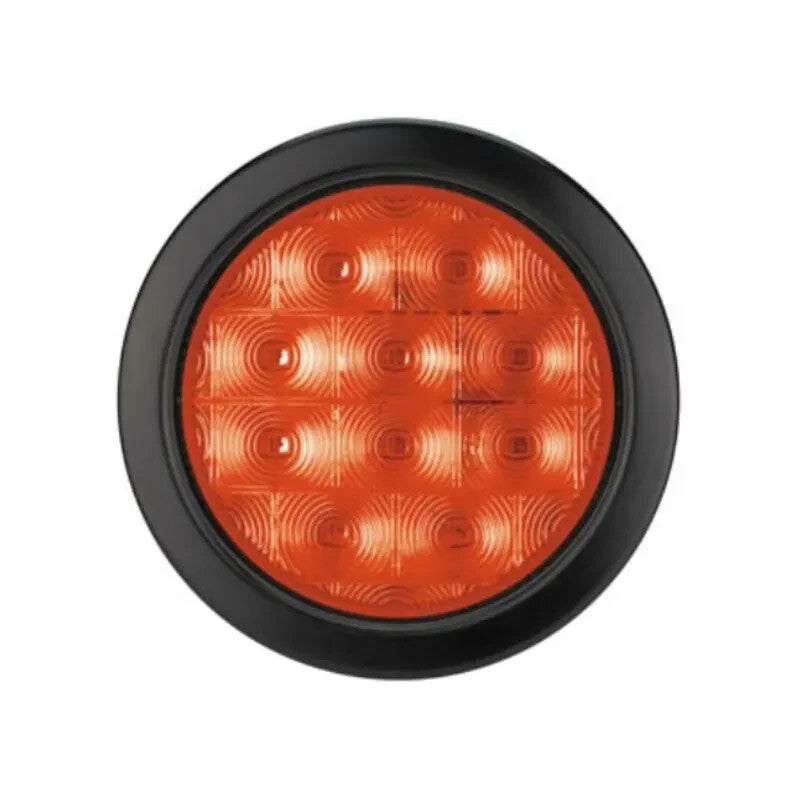

BR141 SERIES INDICATOR LIGHT

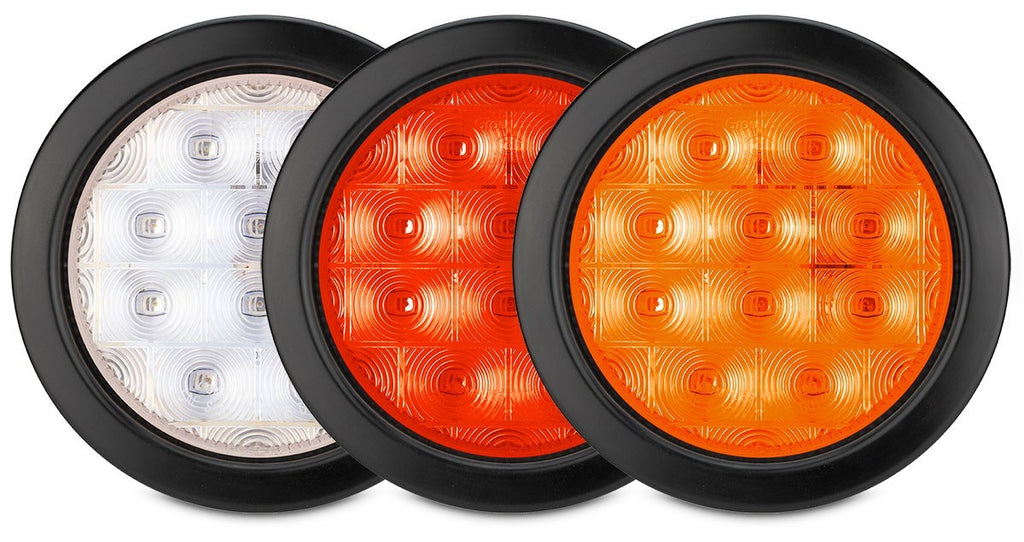

ROADVISION’s BR140 Series 4” round LED signal lamps are a complete solution for the truck, bus & trailer market. Roadvision’s super bright LED signal lamps deliver the durability of maintenance free LED technology and greater visibility, providing increased safety with minimum current draw. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, the BR141 Series will survive the toughest environments. The BR141 grommet mount signal lamps come complete with plugs & grommets and are suitable for new fitments or retrofitting of existing lamps. ROADVISION’s new BR141 Series signal lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. They are dust & water proof and totally maintenance free, with a life span rated at 100,000 hours. With the ROADVISION BR141 Series, it’s FIT and FORGET.
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & sealed polycarbonate lens
- Water and dust proof
- Supplied pre-wired with 300mm of plugged tinned copper cable & grommet
- Simple grommet mount design
- Optional chrome dress up bezel
- Retro-fits existing grommet mount lamps
- ADR/ECE approved for all functions

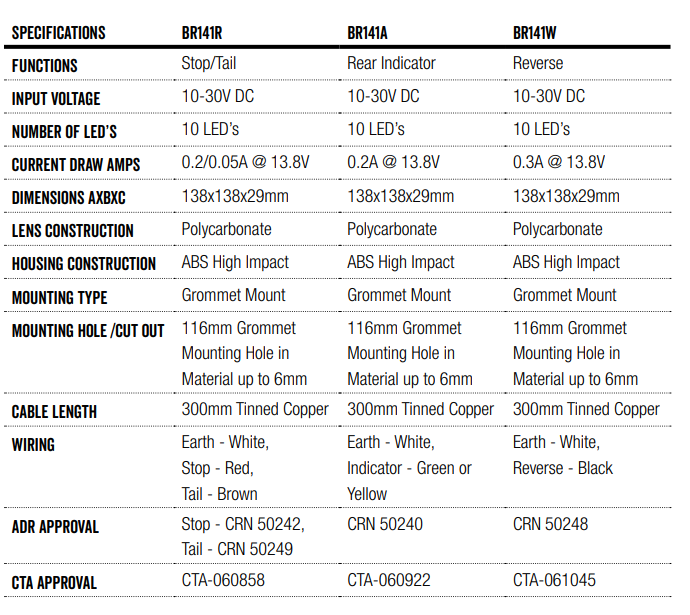

BR141A SPECIFICATIONS
Description - indicator Lamp
Functions - Rear indicator
Voltage Input - 10-30V DC
Number of LED's - 12 LED's
Current Draw Amps - S/T - 0.2/0.05A @ 13.8V

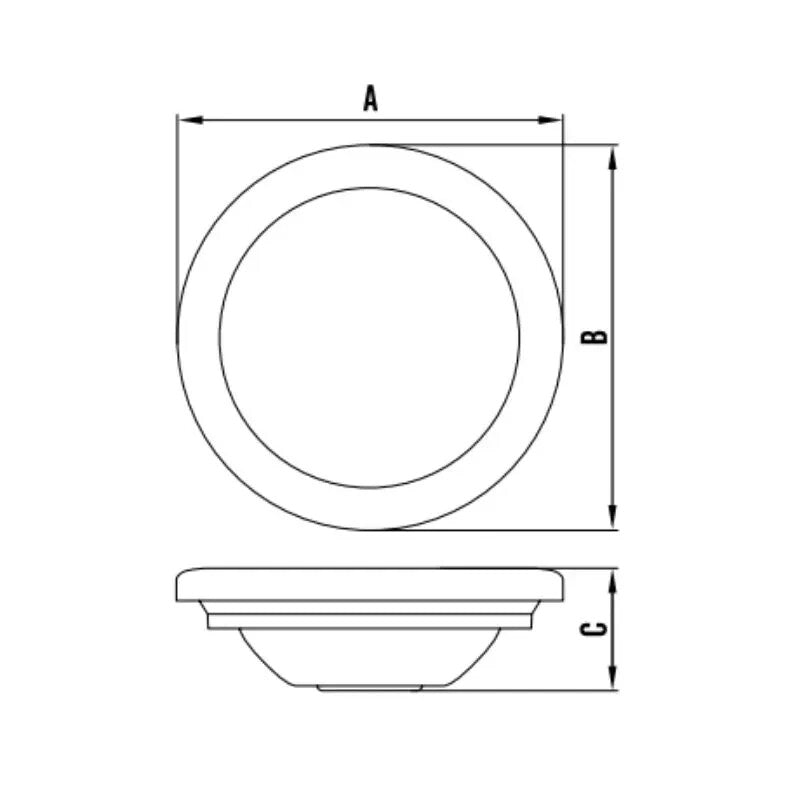

Dimensions AxBxC - 138x44mm
Lens Construction - Polycarbonate
Housing Construction - ABS High Impact
Mounting Type - Grommet Mount

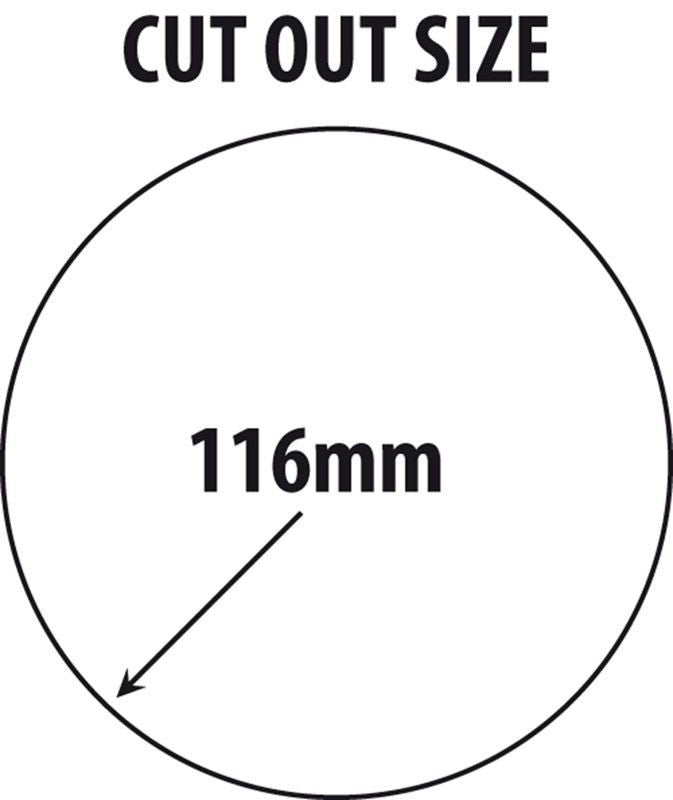

Mounting Hole /Cut Out - 116mm Grommet Mounting Hole in Material up to 6mm
Cable Length - 300mm Tinned Copper
ADR Approval - CRN 46088
