Natural 45mm Square Mechanical Disc Braked Trailer Axle. 1400Kg 64" - 77" Axles

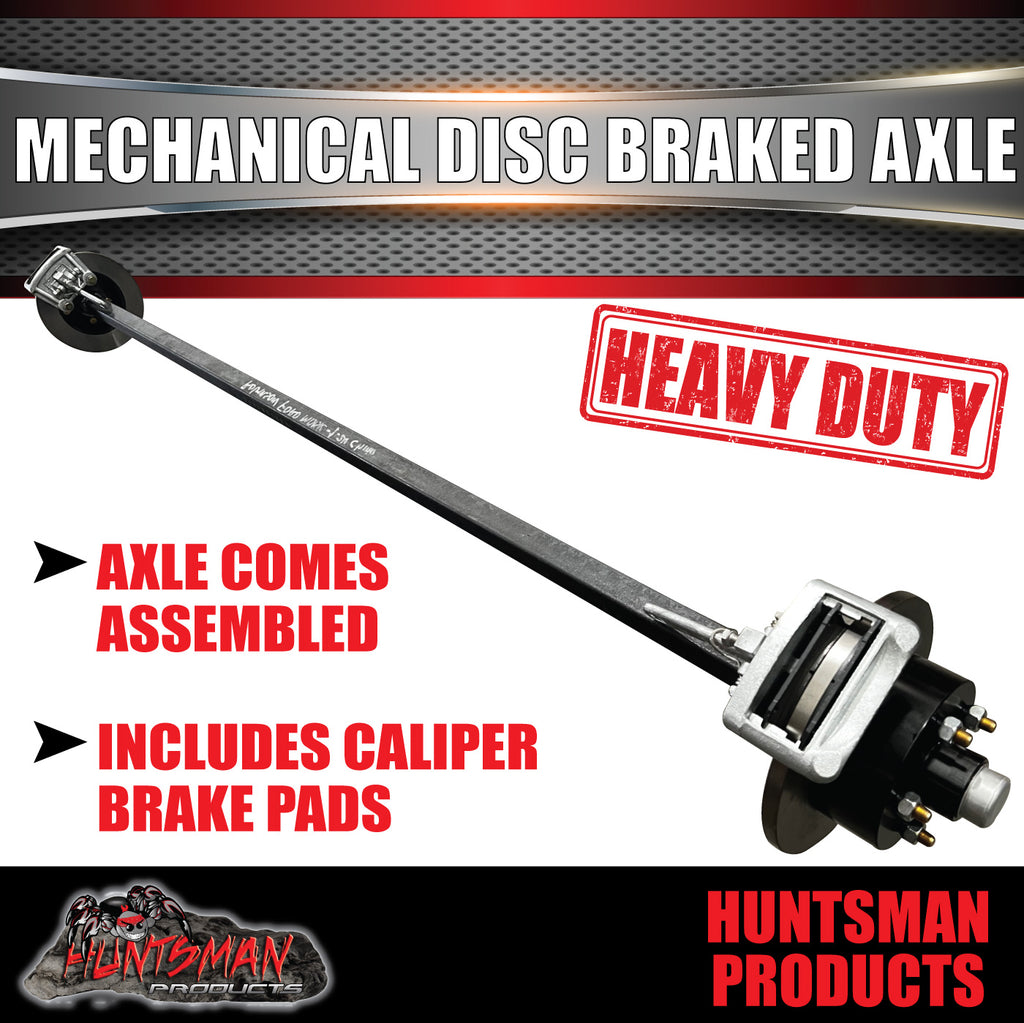

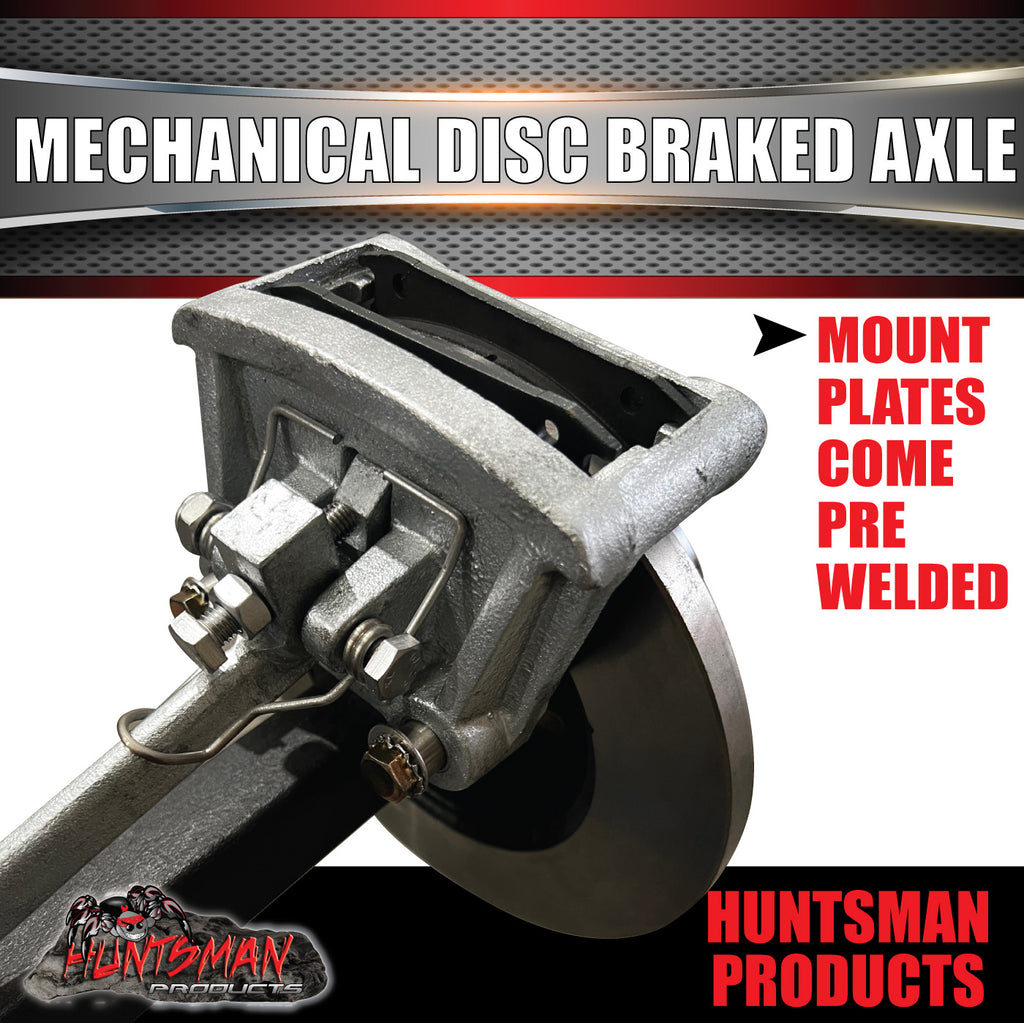

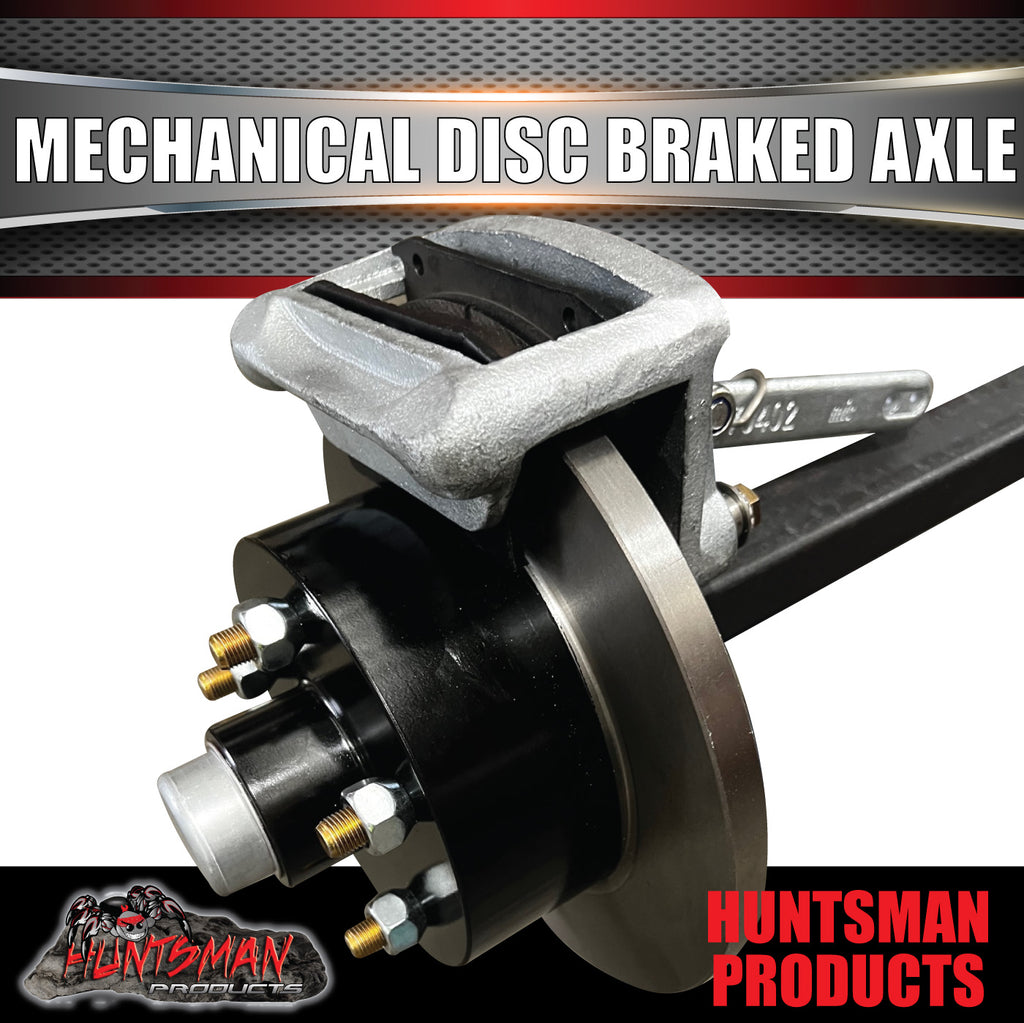

COMPLETE MECHANICAL DISC BRAKED AXLE
45MM SQUARE SOLID
(1400KG RATED)

AXLE LENGTHS 64" - 77" (for longer axles SKU: 195754344598)

AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)

AVAILABLE PATTERNS

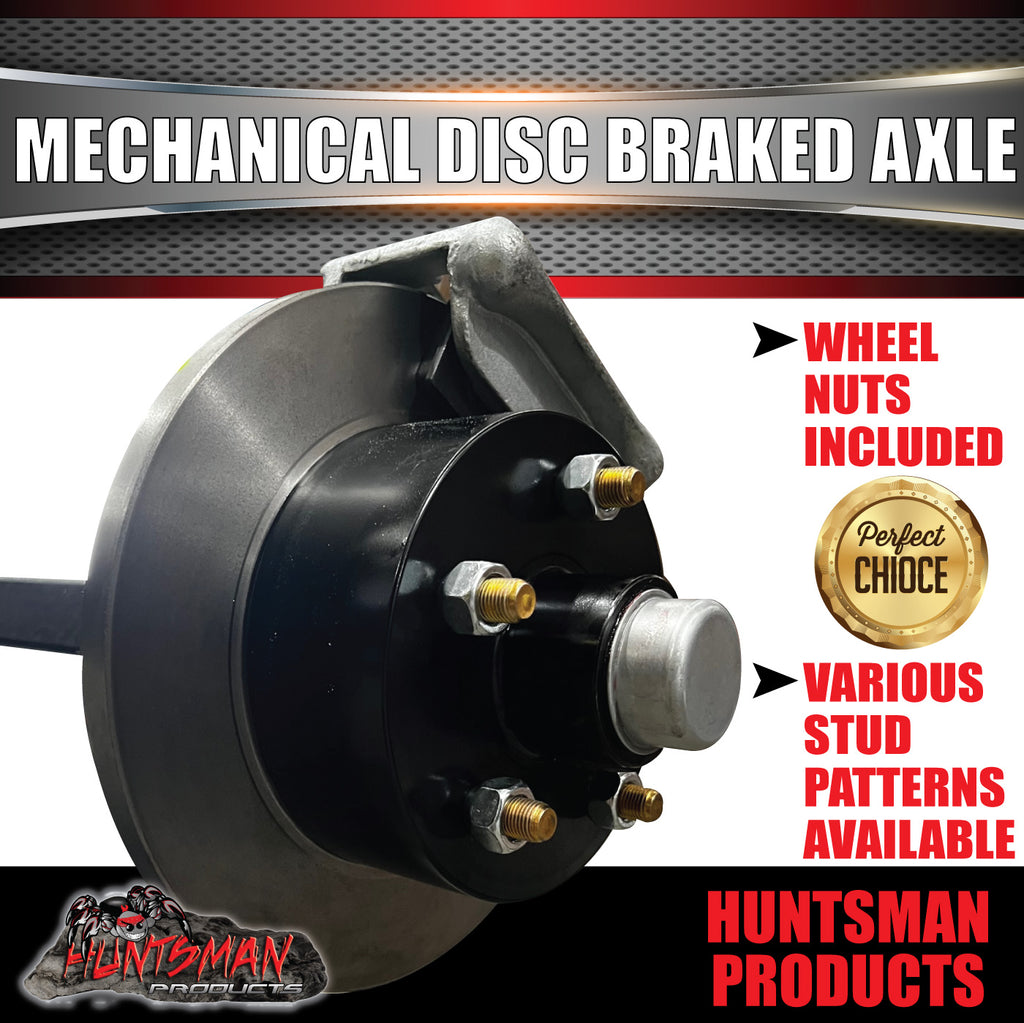

FORD 5 STUD, 5/114.3 PCD, 1/2" STUDS AND NUTS
HOLDEN HT 5 STUD, 5/108 PCD, 7/16" STUDS AND NUTS
HOLDEN HQ 5 STUD, 5/120.65 PCS, 7/16" STUDS AND NUTS
HOLDEN COMMODORE 5 STUD, 5/120 PCD, 7/16" STUDS AND NUTS
12" 6 STUD, 6/139.7 PCD, 1/2" STUDS AND NUTS +$105
12" 5 STUD LANDCRUISER, 5/108 PCD, 9/16" STUDS AND NUTS +$105

SLIMLINE BEARINGS INSTALLED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12710)

COMES GREASED AND COMPLETELY ASSEMBLED AS PICTURED

EXTRAS AVAILABLE
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON THE LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
