DIY 2000kg Tandem Trailer Kit. 10" Mechanical Disc Brakes. Slipper Springs, Axles 60" - 75"

2000Kg DIY TANDEM TRAILER KIT
SLIPPER SPRING SUSPENSION, MECHANICAL DISC BRAKES AND 40MM SQUARE AXLES.
AXLE LENGTHS 60" - 75" (for longer axles SKU: 175712338226)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $105 (12" DISCS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$105 (12" DISCS)

AVAILABLE LENGTHS
60", 1525MM TIP TO TIP (1425MM HUB FACE TO HUB FACE)
63", 1600MM TIP TO TIP (1500MM HUB FACE TO HUB FACE)
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)

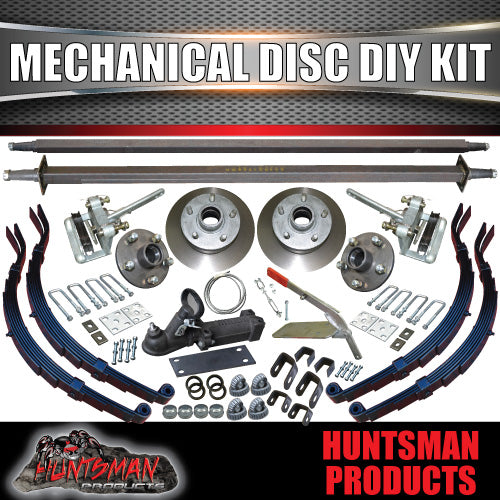

IN THIS KIT
2X 40MM SQUARE AXLES. 1 WITH 10" MECHANICAL DISC BRAKE MOUNTS WELDED TO AXLE, 1000KG RATED EACH (PLEASE SPECIFY AXLE LENGTH OR IF YOUR NOT SURE PLEASE ASK US FOR HELP)
( AVAILABLE IN 60", 63", 64", 65", 66, 67", 68",69", 70", 71", 73", 75" ( TIP TO TIP)

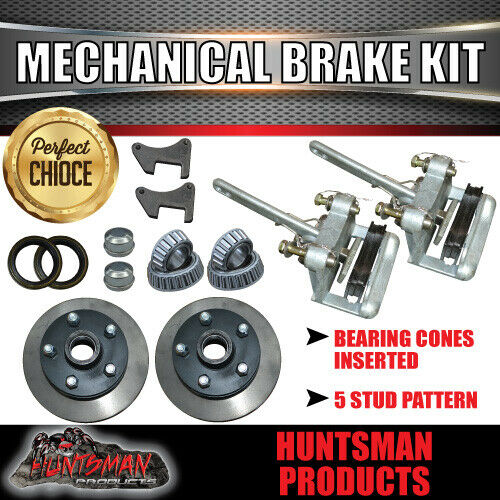

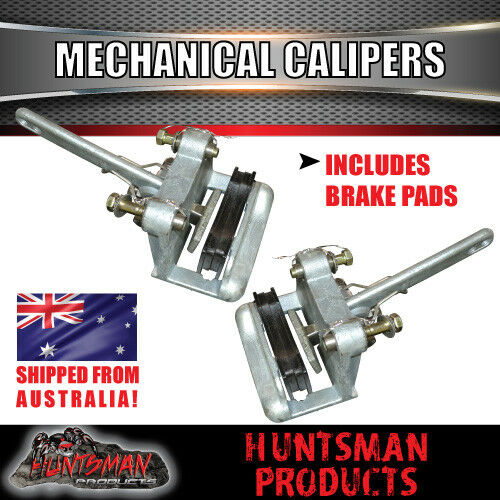

2X MECHANICAL CALIPERS WITH BRAKE PADS
2 X 10" DISC BRAKE HUBS WITH LM BEARING KITS.

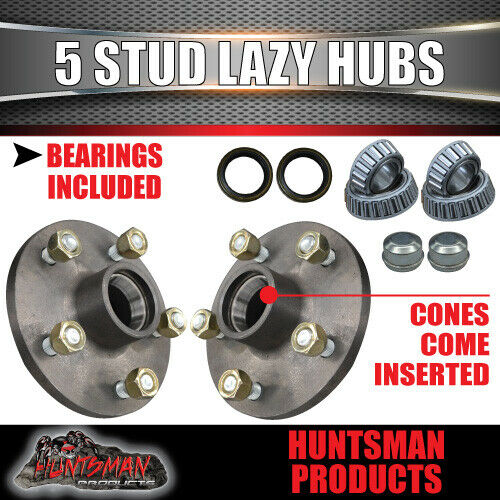

2X LAZY HUBS WITH LM BEARING KITS
ALL X WHEEL NUTS

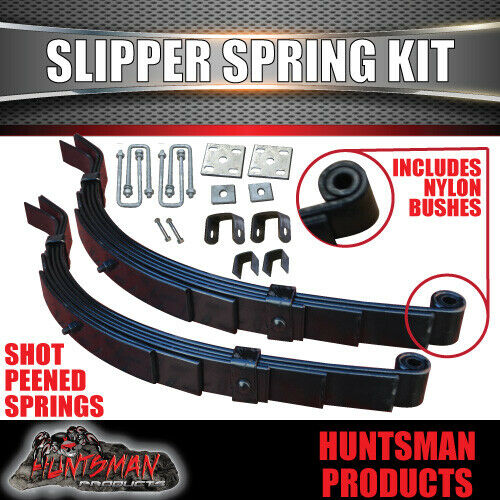

4X 6 LEAF SLIPPER SPRINGS WITH NYLON BUSHES. RATED 1200KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

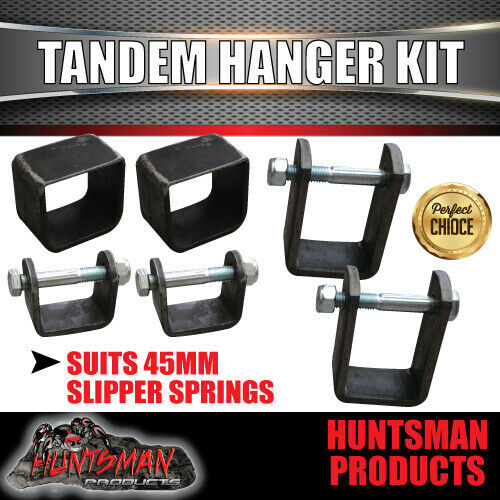

2X FRONT SLIPPER HANGERS
2X REAR SLIPPER HANGERS
2X MIDDLE LARGE SLIPPER HANGERS
4X UNIVERSAL FISH PLATES
8X 40MM X 150MM 1/2" SQUARE U BOLTS
4X AXLE PADS
16X SPRING WASHERS AND NUTS FOR U BOLTS

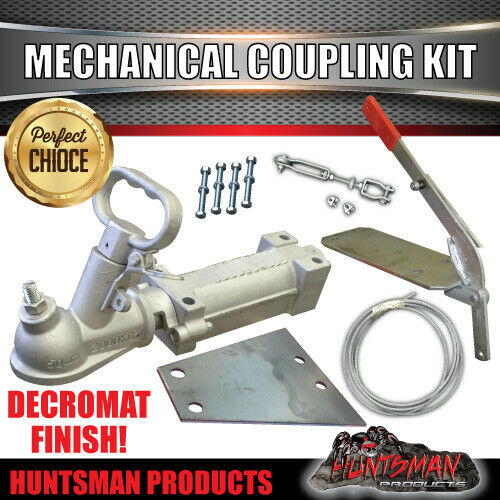

1X 2000KG GALVANISED 4 HOLE OVERRIDE BALL COUPLING
1X MECHANICAL BASE PLATE (MARINE STYLE MECHANICAL LEVERS TO SUIT 75MM OR 100MM DRAW BAR AVAILABLE UPON REQUEST)
1X 8 METRES HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2 X CABLE CLAMPS
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING PLATE
When Ordering please provide your stud pattern and axle length


EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
DROP AXLES APPROX. 5 DAYS TO ENGINEER
NATURAL FINISH GULL WING AXLE UPGRADE $150 PER AXLE
ASSEMBLE OF AXLE $50 PER AXLE
JAPANESE MANUFACTURED BEARINGS $100 (CLICK ON LINK BELOW)

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
