LED LIGHT TRUCK/TRAILER STRIP LAMP STOP/TAIL/IND 10-30V
SKU : 170610794948
$49.00
Available
Details
BR201 SERIES
BR201AR

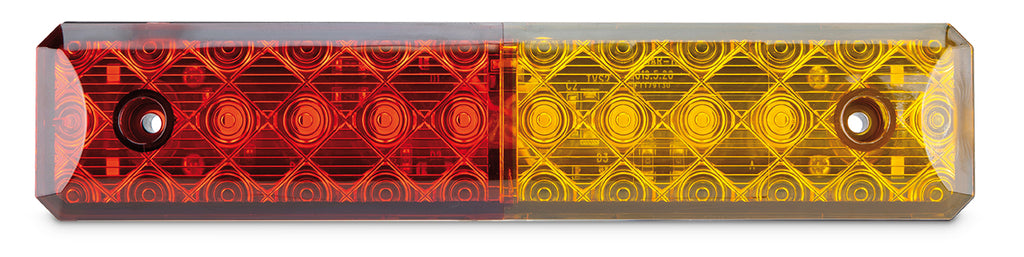

ROADVISION’s BR200 Series LED signal lamps are a versatile slimline solution! Available in Stop/Tail, Indicator & Reverse functions all in a super slim line package, the BR201 Series are a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR201’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR201 Series signal lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
PRICE IS FOR 1 STOP/TAIL/INDICATOR STRIP LIGHT
RANGE FEATURES
- Compact slimline LED signal lamps
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- ADR/ECE approved for all functions
BR201AR SPECIFICATIONS
Description - Rect Strip Stop/Tail/Ind
Functions - Stop/Tail & Indicator
Voltage Input - 10-30V DC
Number of LED's - Indicator - 12 LED's, Stop/Tail - 12 LED's
Current Draw Amps - Ind - 0.2A @ 13.8V, S/T - 0.2/0.05A @ 13.8V

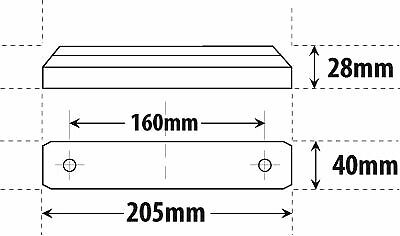

Dimensions AxBxC - 205x40x28mm
Lens Construction - Polycarbonate
Housing Construction - Polycarbonate
Mounting Hole /Cut Out - 160mm
Cable Length - 300mm Tinned Cable
ADR Approval - Stop - Ind - CRN 46095, Stop - CRN 46094, Tail - CRN 46093
Wiring Colour Codes - Earth - White, Stop - Red, Rail - Brown, Indicator - Green or Yellow
