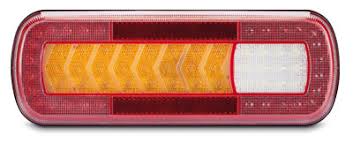

x2 Roadvision led Sequential Combination Rear Light
SKU : 174222689874
$160.00
Available
Details
COMBINATION LAMPS BR280 SERIES
ROADVISION’s new BR280 Series LED combination lamps feature the latest sequential indicator technology! Designed as an all-in-one combination lamp, the BR280 series delivers stop/tail, reverse, fog, retro reflector and a sequential indicator that flashes progressively offering an increased level of safety. Constructed with durable polycarbonate lenses and housings, the BR280 Series will survive the toughest environments. Designed with a multi-fit mount, they can be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design or attached using the twin rear stud mount. Dust & water proof to IP67 and totally maintenance free, with a life span rated at 100,000 hours, ROADVISION’s new BR280 Series is a complete FIT and FORGET Solution.
PRICE IS FOR 2 X ROADVISION BR280ARW
- Multi-volt 10-30V DC input & low current draw
- Sequential Indicator function
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- IP67 water and dust proof
- Supplied pre-wired with 500mm sheathed cable
- Simple surface or twin bolt mount design
- Retro reflector integrated into lens
- ADR/ECE approved for all functions
BR280ARW SPECIFICATIONS
Description - Rectangle Stop/Tail/Ref Sequential Indicator Combination
Functions - Stop/Tail/Sequential Indicator/Reflector/Fog
Voltage Input - 10-30V DC
Number of LED's - Indicator - 24 LED's, Stop/Tail - 14 LED's, Reverse 12 LED's, Fog – 14 LED’s
Current Draw Amps - Ind - 0.2A @ 13.8V, S/T - 0.2/0.05A @ 13.8V, Rev – 0.2A @ 13.8V DC, Fog – 0.3A @ 13.8V DC
Dimensions AxBxC - 283x100x29mm
Lens Construction - Polycarbonate
Housing Construction - Polycarbonate
Mounting Type - Surface Mount
Mounting Hole /Cut Out - 116mm
Cable Length - 500mm Sheathed
ADR Approval - Ind – ECE 2a-E9-01 16532, Stop/Tail – ECE R1-S1-E9-02 16532, Rev – ECE AR-E9-00 16532, Fog – ECE F1-E9-00 16532, Ref – ECE IB-E9-02 16532
