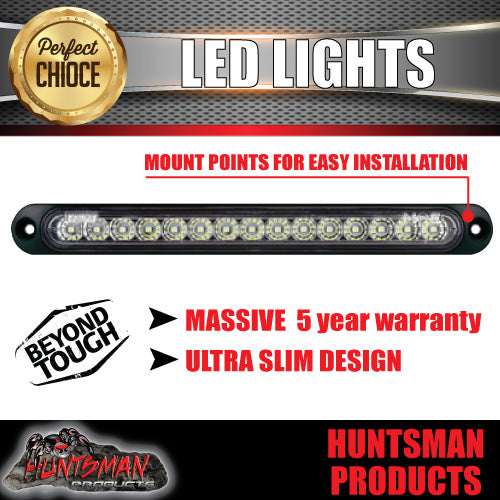

Roadvision LED Rear Ultra Slim Reverse Strip Light. 252mm x 28mm

SKU : 193385791833
$28.00

Available



Details

COMBINATION LAMPS BR70 SERIES

X1 BR70W REVERSE STRIP LIGHT

ROADVISION’s BR70 Series LED signal lamps are a versatile, ultra-slimline DIY lighting solution! At only 28mm wide, the BR70 Series are designed for applications where space is at a premium. Available in Stop/Tail, Indicator  & Reverse, the Indicator is also available with a sequential function.

The BR70 Series deliver the durability of maintenance free LED technology and greater visibility for increased safety. They are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR70 Series strip signal lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and high impact ABS housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.


PRICE IS FOR 1 ONLY ROADVISION BR70W REVERSE STRIP LIGHT


RANGE FEATURES

  • Ultra-slimline LED strip signal lamps
  • Multi-volt 10-30V DC input & low current draw
  • Brighter than conventional incandescent systems
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • Sealed polycarbonate lens & high impact ABS housing
  • Water and dust proof
  • Pre-wired with 300mm of sheathed tinned copper cable
  • Simple surface mount design
  • ADR/ECE approved for all functions

BR70W SPECIFICATIONS

Description - Reverse Rear Strip Lamp

Functions - Reverse

Voltage Input - 10-30V DC

Number of LED's - 15 LED's

Current Draw Amps - 0.1A @ 13.8V

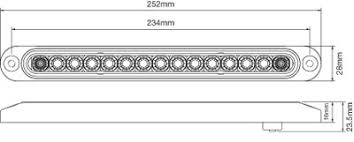

Dimensions AxBxC - 252x28x23.5mm

Lens Construction - Polycarbonate

Housing Construction - ABS High Impact

Mounting Type - Surface Mount

Mounting Hole /Cut Out -234mm

Cable Length - 300mm Tinned Cable

ADR Approval - ECE E4-23R-0023465
