DIY 1400KG Trailer Kit. Slipper Springs Electric Drum Brakes. Stub Axles. KOYOS

DIY 1400KG SINGLE AXLE TRAILER KIT
ELECTRIC BRAKES, SLIPPER SPRINGS
45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)
D40/NP300/PATHFINDER (6/114.3 PCD, 1/2" STUDS AND NUTS)
F100/JEEP (5/127 PCD, 1/2" STUDS AND NUTS) (upon request, POA)

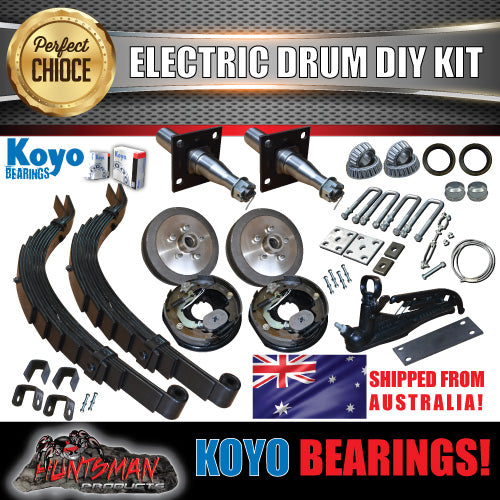

IN THIS KIT

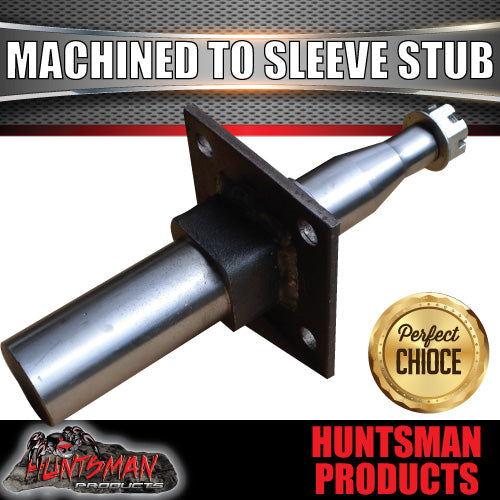

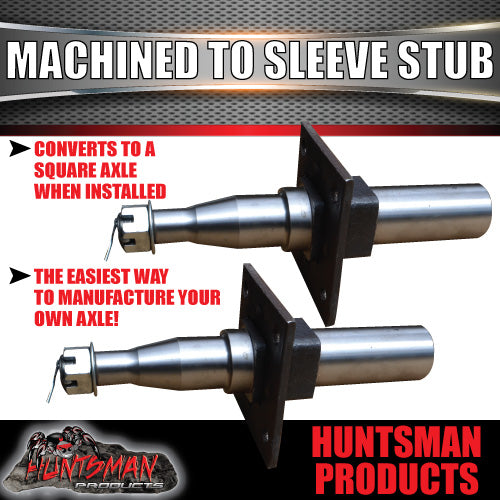

X2 BRAND NEW 45MM SQUARE SOLID STUB AXLES WITH ELECTRIC BRAKE MOUNTS WELDED MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION

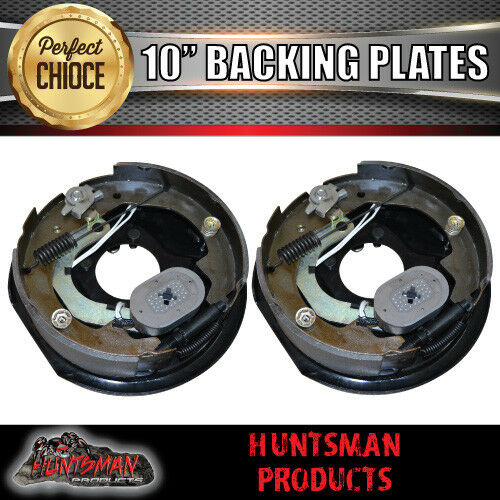

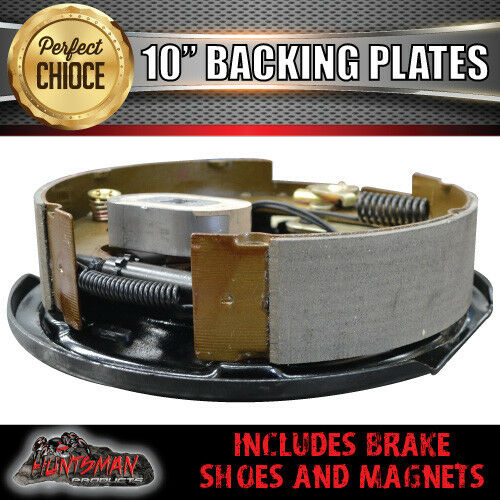

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

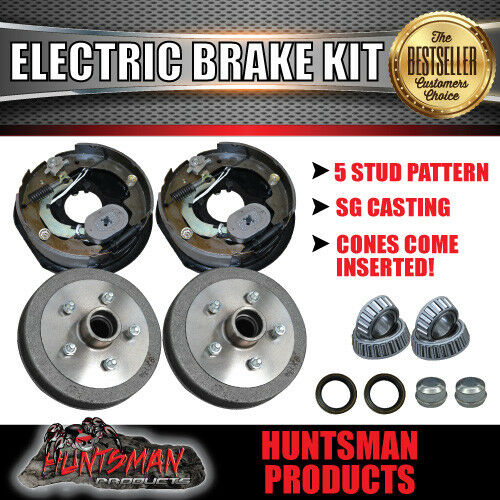

2X 10" HUB DRUMS. drums come with cups already inserted.
2X SLIMLINE JAPANESE KOYO BEARING SETS INCLUDES DUST SEALS AND DUST CAPS

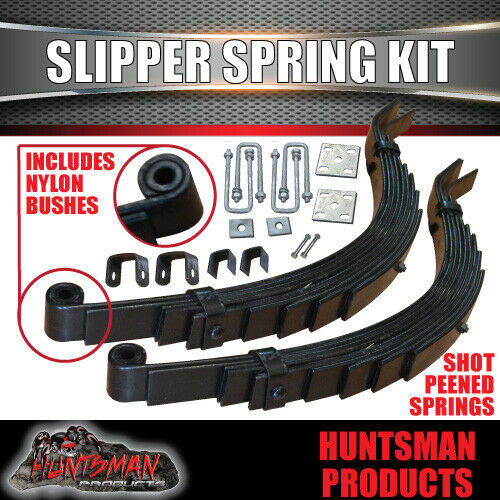

2X 9 LEAF 45MMX6MM BLACK SLIPPER SPRINGS (RATED 1450KG)(SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

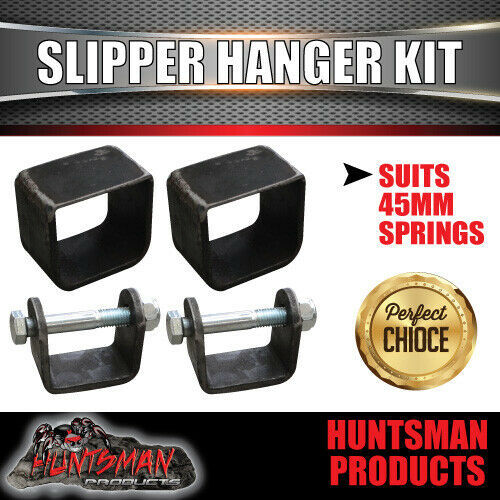

2X FRONT SLIPPER HANGERS WITH 1/2" SPRING BOLTS
2X REAR SLIPPER HANGERS
2X 6MM FISH PLATES
4X 50X155MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

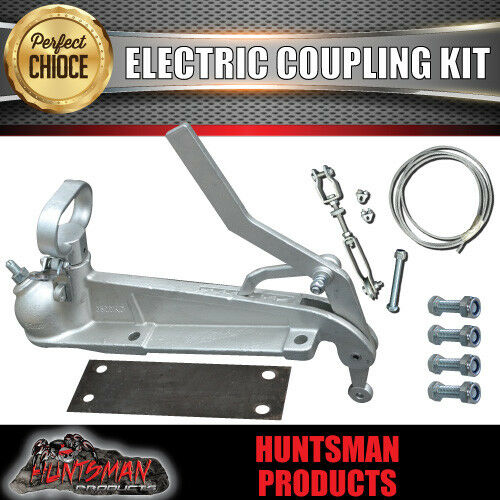

3500KG 4 HOLE BALL COUPLING WITH HANDBRAKE LEVER
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
4 HOLE COUPLING BASE PLATE
8 METRES 4MM HAND BRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
2X CABLE CLAMPS
1X CABLE ADJUSTER AND STAINLES BOLT WITH NYLOC NUTS

ON PURCHASING PLEASE PROVIDE YOUR STUD PATTERN


KOYO BEARINGS STANDARD IN THIS KIT

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
