DIY 2000kg Tandem Kit. 12" L/C Mechanical Disc Brakes. Slipper Springs, Stub Axle

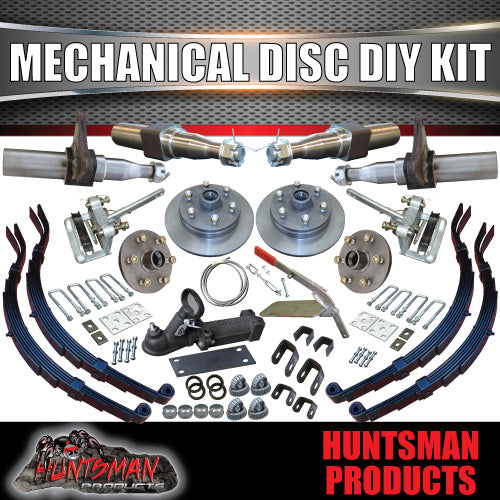

DIY TANDEM TRAILER KIT
SLIPPER SPRING SUSPENSION, 12" L/C MECHANICAL DISC BRAKES, SPECIALLY MACHINED STUBS
2000KG RATED.


AVAILABLE STUD PATTERNS
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)


IN THIS KIT

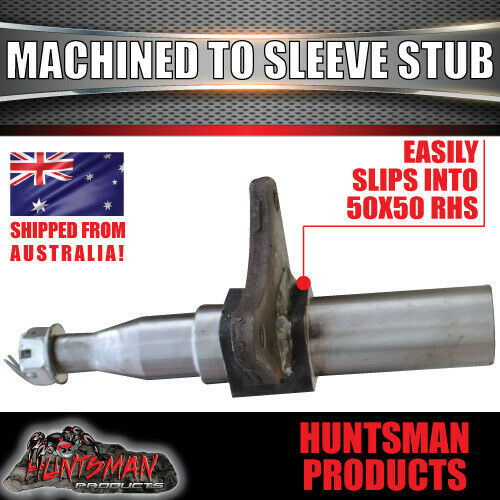

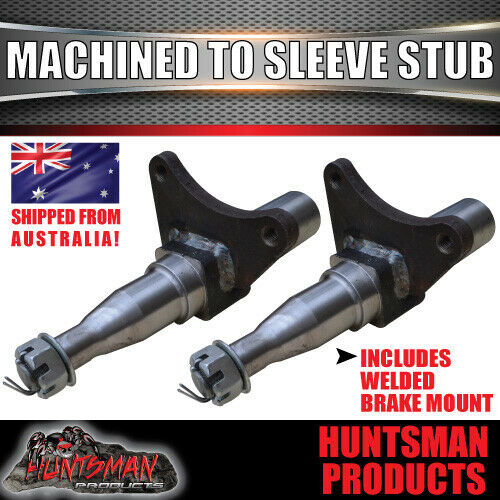

X2 BRAND NEW 45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION. DISC MOUNTS ARE PRE WELDED FOR CONVENIENCE
X2 BRAND NEW 45MM SQUARE SOLID STUB AXLES MACHINED TO SLEEVE INTO 50X50X5MM R.H.S BOX SECTION

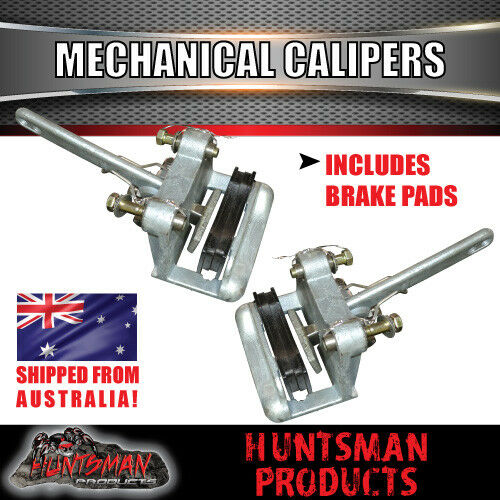

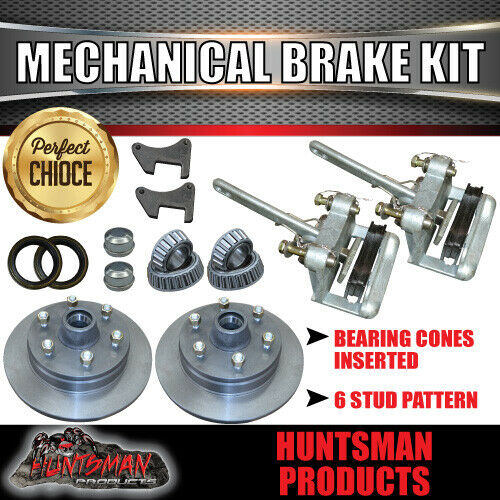

2X MECHANICAL CALIPERS WITH BRAKE PADS

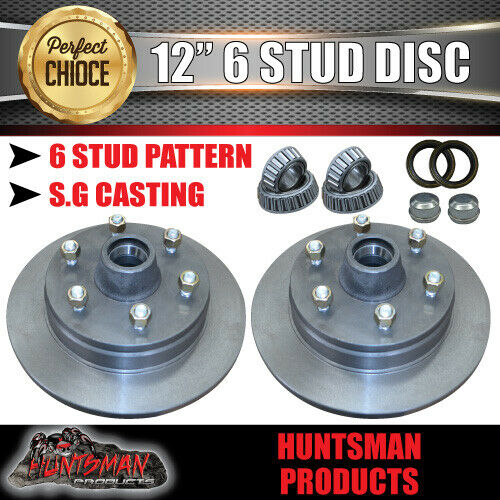

2 X 12" DISC HUBS WITH SLIMLINE BEARING KITS. AVAILABLE IN 5 OR 6 STUD LANDCRUISER PATTERN

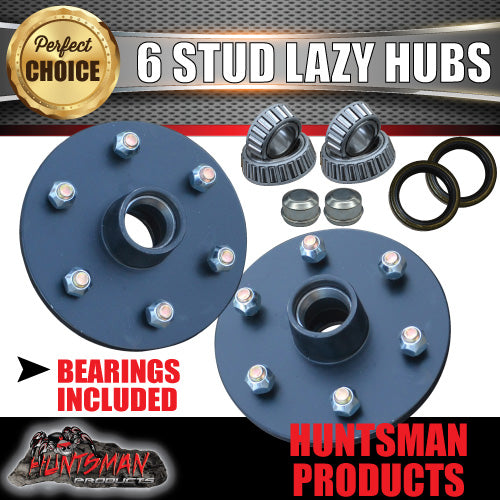

2X LAZY LANDCRUISER PATTERN HUBS WITH SLIMLINE BEARING KITS
ALL X WHEEL NUTS
4X 6 LEAF SLIPPER SPRINGS WITH NYLON BUSHES. RATED 1200KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
2X FRONT SLIPPER HANGERS
2X REAR SLIPPER HANGERS
2X MIDDLE LARGE SLIPPER HANGERS
4X UNIVERSAL FISH PLATES
8X 50MM X 130MM 1/2" SQUARE U BOLTS
4X AXLE PADS
16X SPRING WASHERS AND NUTS FOR U BOLTS

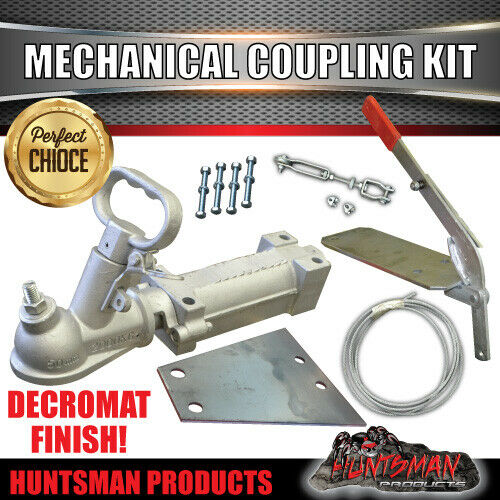

1X 2000KG GALVANISED 4 HOLE OVERRIDE BALL COUPLING
1X MECHANICAL BASE PLATE (MARINE STYLE MECHANICAL LEVERS TO SUIT 75MM OR 100MM DRAW BAR AVAILABLE UPON REQUEST)
1X 8 METRES HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2 X CABLE CLAMPS
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING PLATE
When Ordering please provide your stud pattern

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $100.0 (CLICK ON LINK BELOW)

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
