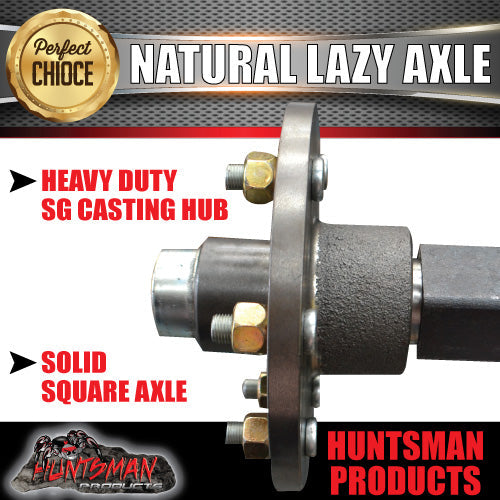

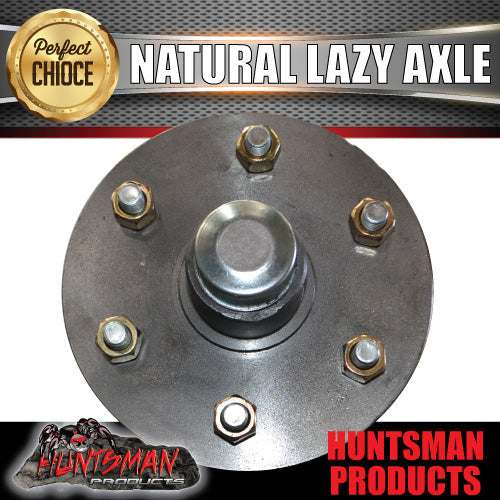

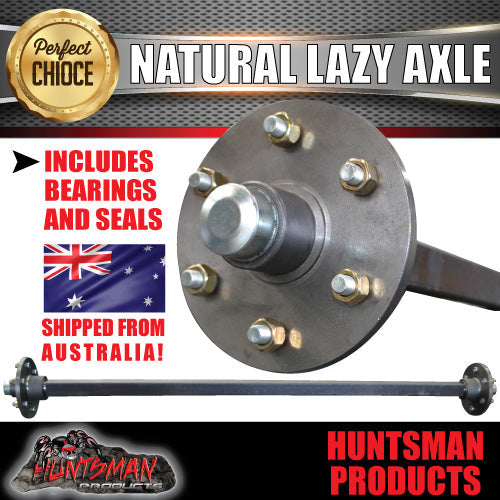

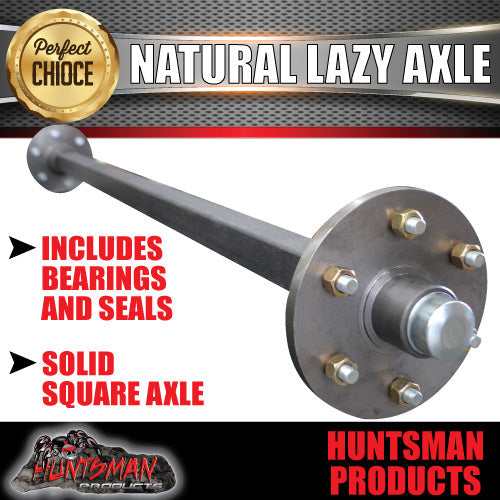

50mm square 2000Kg Lazy 5 or 6 Stud Landcruiser Pattern Trailer Caravan Axle

50MM SQUARE SOLID COMPLETE LAZY AXLE (2000KG RATED)
5 OR 6 STUD LANDCRUISER STUD PATTERN.
2 TONNE LANDCRUISER BEARINGS

STUD PATTERNS AVAILABLE
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)

AXLE LENGTHS AVAILABLE
PLEASE NOTE: Minimum clearance from hub face to chassis per side: 155mm
Hub face to back of electric backing plate per side: 155mm
1700MM TIP TO TIP (hub face to hub face 1525mm)
1750MM TIP TO TIP (hub face to hub face 1575mm)
1800MM TIP TO TIP (hub face to hub face 1625mm)
1850MM TIP TO TIP (hub face to hub face 1675mm)
1900MM TIP TO TIP (hub face to hub face 1725mm)
1950MM TIP TO TIP (hub face to hub face 1775mm)
2000MM TIP TO TIP (hub face to hub face 1825mm)
2050MM TIP TO TIP (hub face to hub face 1875mm)
2100MM TIP TO TIP (hub face to hub face 1925mm)
2150MM TIP TO TIP (hub face to hub face 1975mm)
2200MM TIP TO TIP (hub face to hub face 2025mm)
2250MM TIP TO TIP (hub face to hub face 2075mm)
2300MM TIP TO TIP (hub face to hub face 2125mm)
2350MM TIP TO TIP (hub face to hub face 2175mm)
2385MM TIP TO TIP (hub face to hub face 2210mm)
2445MM TIP TO TIP (hub face to hub face 2270mm)
2475MM TIP TO TIP (hub face to hub face 2300mm)
CUSTOM AXLE LENGTH UP TO 2500MM TIP TO TIP +$50 PER AXLE
Custom Axle lengths will need to be manufactured which will take approx 5 extra business days for dispatch on top of the current dispatch times

AXLE THICKNESS: 50mm solid
BEARINGS: 30210 INNER AND 15123 OUTER

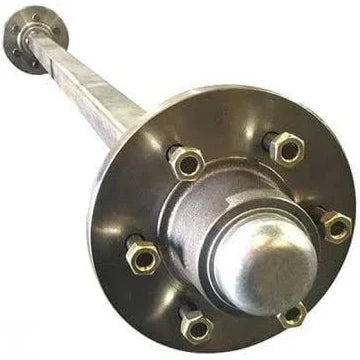

AXLE COMES COMPLETELY ASSEMBLED AS PICTURED.
THIS AXLE USED BY MANY TRAILER, CARAVAN AND CAMPER TRAILER MANUFACTURES AUSTRALIA WIDE.

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295. DROP AXLE TAKES APPROX 5 BUSINESS DAYS
UPGRADE TO JAPANESE BEARINGS $90.0 (CLICK ON LINK BELOW)

 "UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"
