DIY 4500Kg Tri Axle Tiny Home Trailer Kit Electric Brakes Machine Stubs R/Roller

DIY 4500KG TRI AXLE TINY HOME TRAILER KIT
ROCKER ROLLER LOAD SHARING SUSPENSION, 10" PARALLEL BRAKES, MACHINED STUB AXLES
7X 14" BLACK STEEL RIMS AND 185R14C TYRES


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS) MINIMUM 76MM CENTRE BORE ON RIM REQUIRED
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) MINIMUM 95MM CENTRE BORE ON RIM REQUIRED

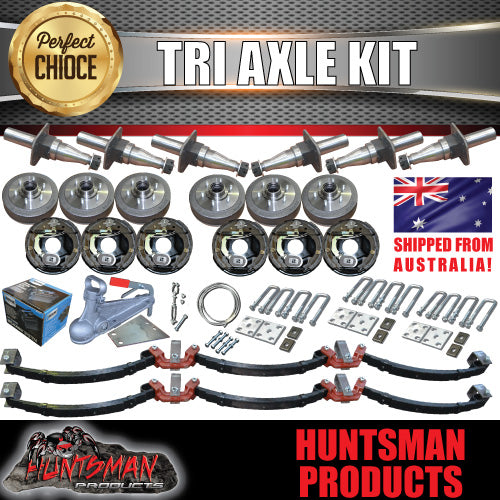

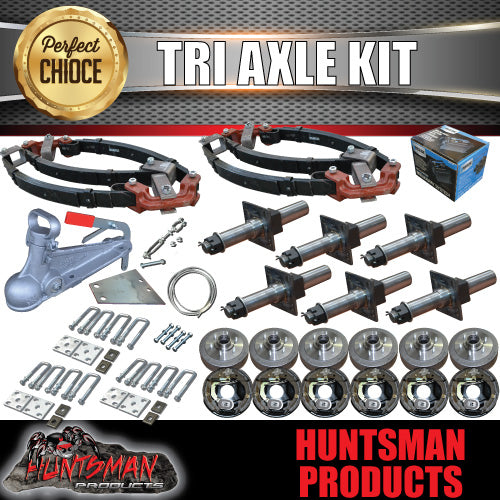

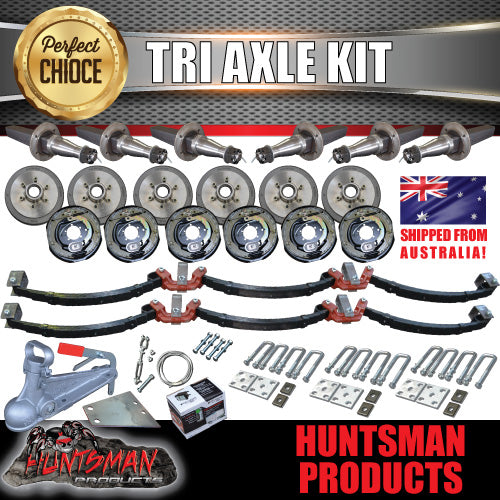

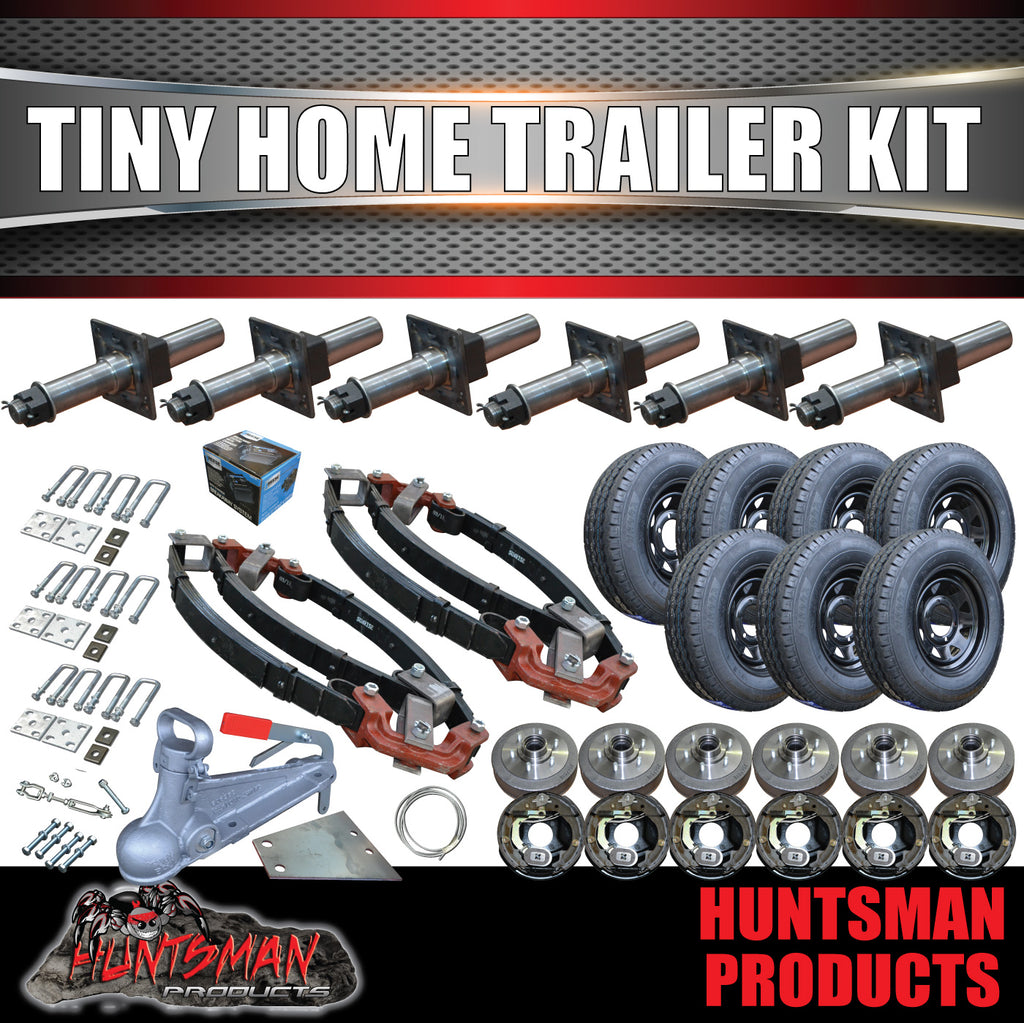

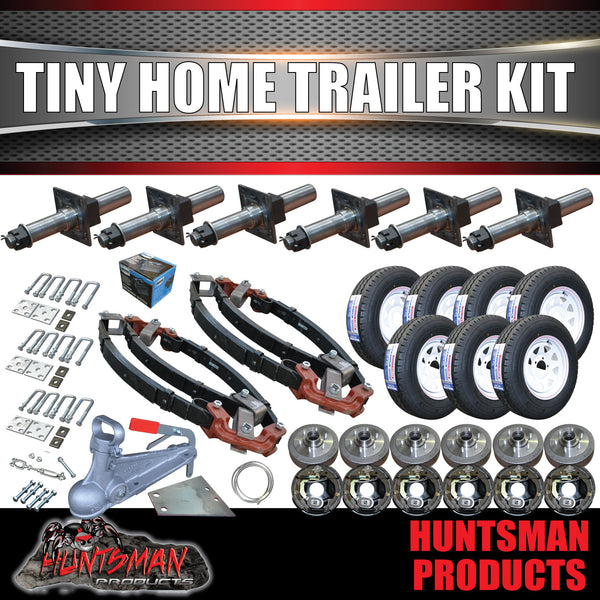

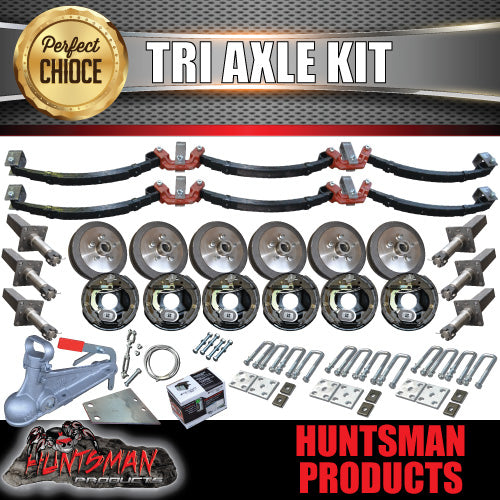

IN THIS KIT

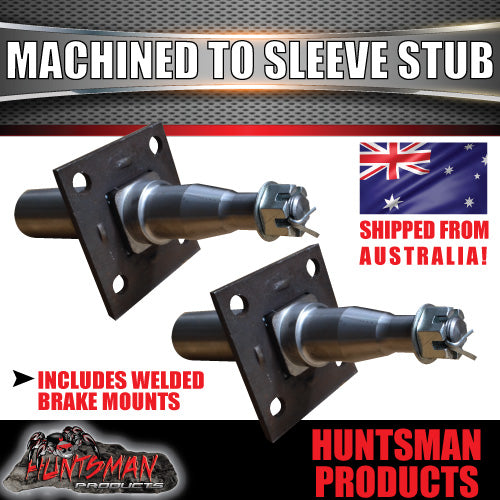

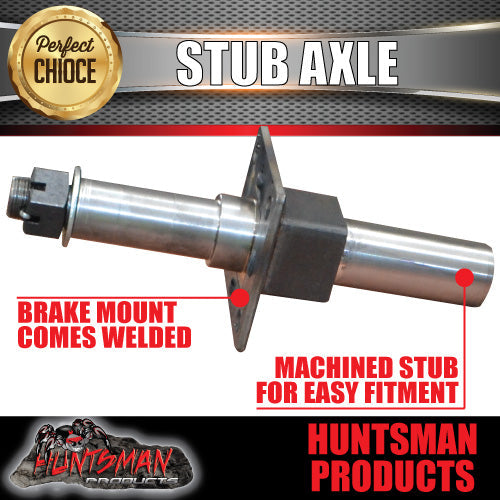

6 X 50MM X 450MM PARALLEL STUB AXLES MACHINED TO SLEEVE INTO 50MM X 50MM X 5MM RHS BOX SECTION WITH ELECTRIC BRAKE MOUNTS WELDED TO AXLE, 1600KG RATED PER PAIR

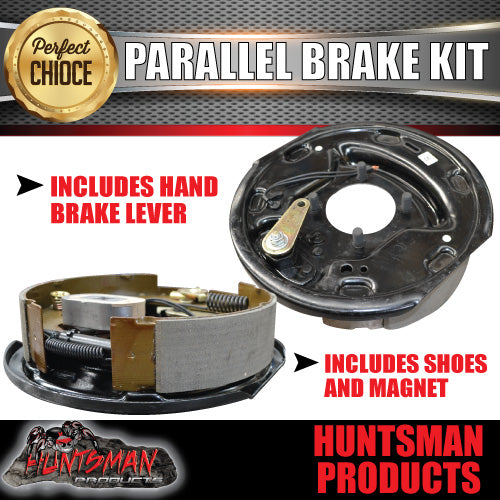

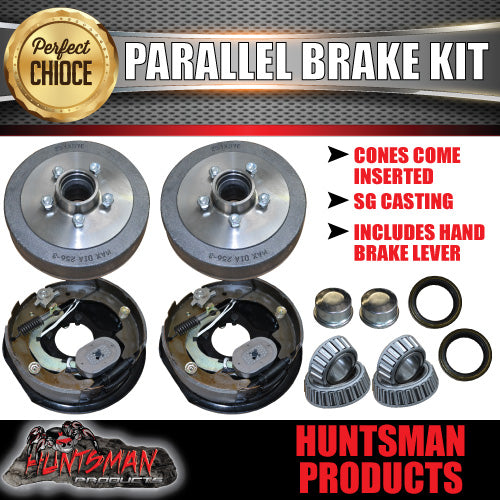

6X 10" ELECTRIC BACKING PLATES WITH WASHERS AND STAR NUTS FOR FIXING TO BRAKE MOUNTS (EACH BACKING PLATE COMES WITH HANDBRAKE LEVERS)

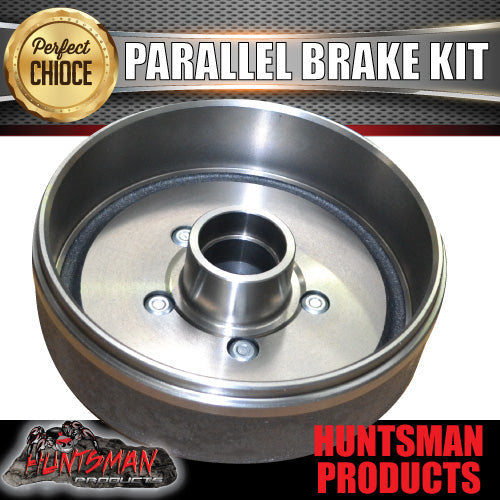

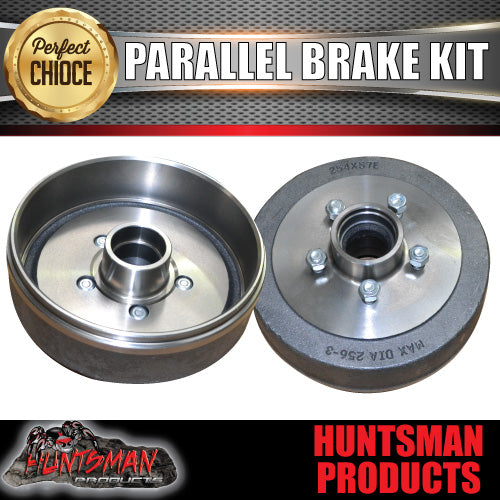

6X 10" PARALLEL ELECTRIC BRAKE DRUMS. (CUPS ALREADY INSERTED INTO DRUMS)
6X PARALLEL BEARING KITS INCLUDING DUST SEALS AND DUST CAPS
ALL WHEEL NUTS

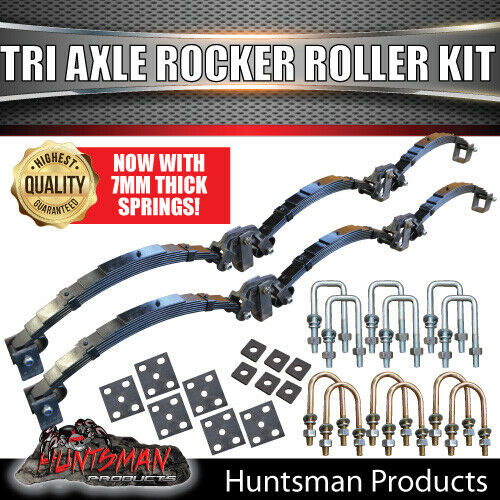

1X 6 LEAF 4.5 TONNE LOAD SHARING TRI AXLE ROCKER ROLLER SPRING SET WITH ALL GREASABLE SHACKLES AND HANGERS ALREADY ASSEMBLED (springs are shot peened for extra strength)
6X UNIVERSAL EXTRA LARGE FISH PLATES

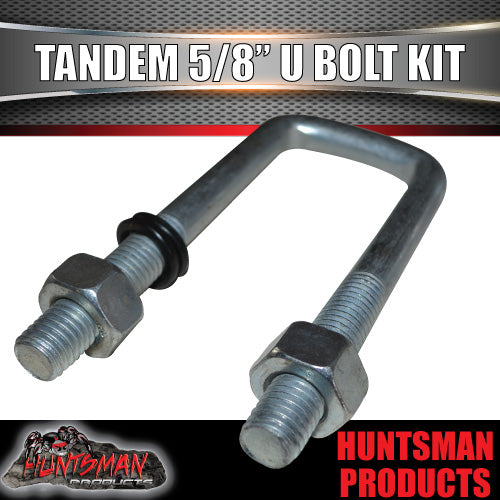

12X 50MMX 150MM SQUARE HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
6X AXLE PADS

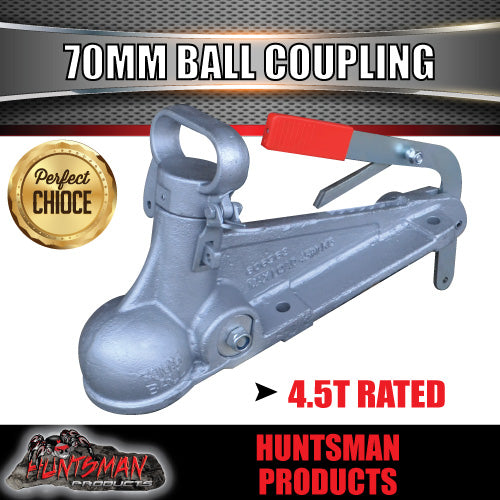

1X 4500KG ELECTRIC BALL COUPLING WITH HAND BRAKE LEVER
COUPLING CTA APPROVAL NUMBER: CTA-061054
1X 8 METRES HAND BRAKE CABLE (PLEASE SPECIFY IF LONGER IS NEEDED)
1X CABLE ADJUSTER
1X 4 HOLE COUPLING WELD ON PLATE
2X CABLE CLAMPS
8 X 1/2" HIGH TENSILE BOLTS WITH NUTS AND WASHERS FOR COUPLINGS

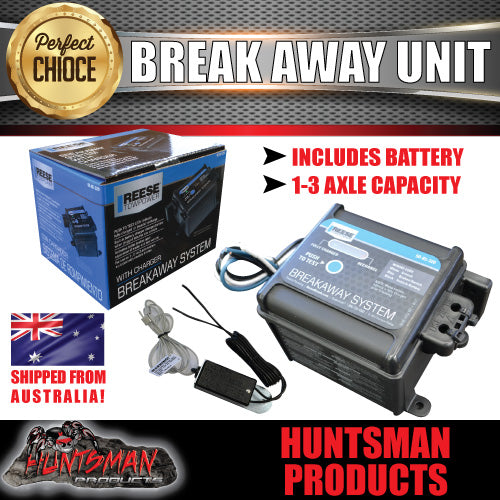

1X BRAKE AWAY UNIT

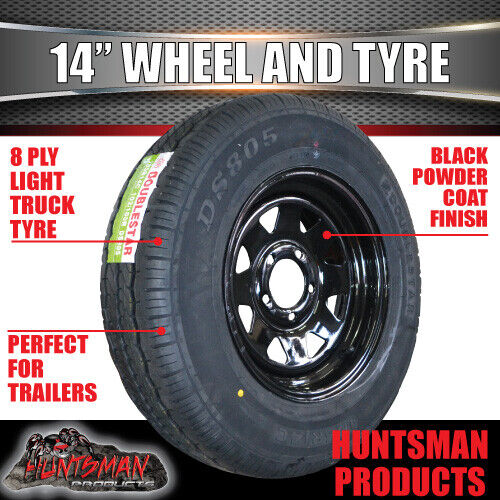

7 X 14" BLACK STEEL RIMS AND 185R14C TYRES
RIM PCD: 6/139.7 OR 5/114.3
REAR OFFSET WITH TYRE FITTED: APPROX 115MM
WHEEL LOAD RATING: 850KG EACH
TYRE SIZE: 185R14C
TYRE LOAD RATING: 102/100Q
KG RATING PER TYRE: 850KG
TYRE ROLLING DIAMETER: 650MM
On ordering please supply your stud pattern


BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $150.0 (PLEASE CLICK ON LINK BELOW)

" CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
