DIY TRI AXLE TRAILER KIT. 4500KG RATED. 2 TONNE AXLES

DIY TRI AXLE TRAILER KIT
ROCKER ROLLER LOAD SHARING SUSPENSION, 12" 2 TONNE ENGINEERED AXLES
4500KG RATED.


Stud Patterns Available
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)

AXLE LENGTHS AVAILABLE
PLEASE NOTE: Minimum clearance from hub face to chassis per side: 155mm
PLEASE NOTE: Hub face to back of Electric backing plate 155mm per side
1700MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
1750MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
1800MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
1850MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
1900MM TIP TO TIP (1725MM HUB FACE TO HUB FACE)
1950MM TIP TO TIP (1775MM HUB FACE TO HUB FACE)
2000MM TIP TO TIP (1825MM HUB FACE TO HUB FACE)
2050MM TIP TO TIP (1875MM HUB FACE TO HUB FACE)
2100MM TIP TO TIP (1925MM HUB FACE TO HUB FACE)
2150MM TIP TO TIP (1975MM HUB FACE TO HUB FACE)
2200MM TIP TO TIP (2025MM HUB FACE TO HUB FACE)
2250MM TIP TO TIP (2075MM HUB FACE TO HUB FACE)
2300MM TIP TO TIP (2125MM HUB FACE TO HUB FACE)
2350MM TIP TO TIP (2175MM HUB FACE TO HUB FACE)
2400MM TIP TO TIP (2225MM HUB FACE TO HUB FACE)
2435MM TIP TO TIP (2260MM HUB FACE TO HUB FACE)
CUSTOM AXLE LENGTH UP TO 2500MM TIP TO TIP +$150 PER KIT
Custom Axle lengths will need to be manufactured which will take approx 5 extra business days for dispatch on top of the current dispatch times

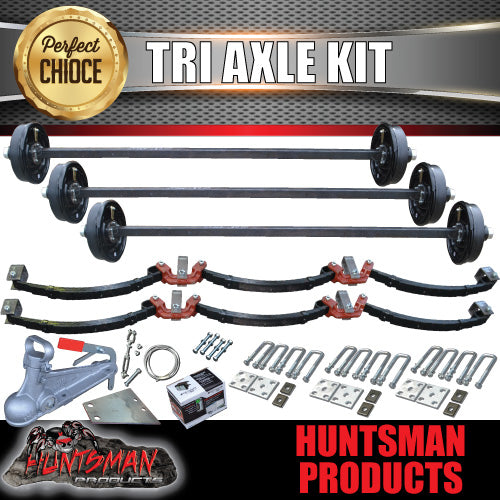

IN THIS KIT

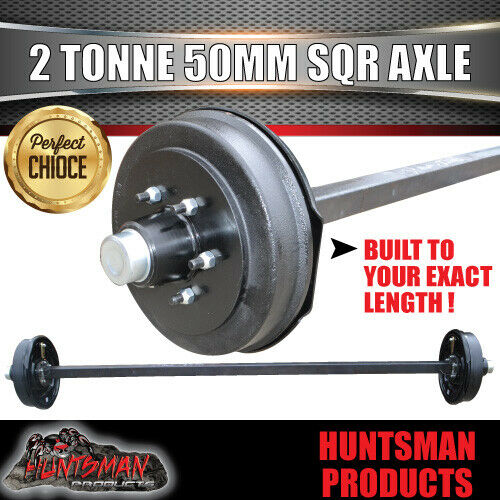

3X 50MM SQUARE 2000KG COMPLETE GREASED AND ASSEMBLED 12" ELECTRIC BRAKED AXLES. 30210 AND 15123 BEARINGS INSTALLED
AXLES TAKE APPROX 5 DAYS TO BE ENGINEERED (available any length up to 2500mm tip to tip / 2325mm hub face to hub face)
1X 9 LEAF 6 TONNE LOAD SHARING TRI AXLE ROCKER ROLLER SPRING SET WITH GREASABLE SHACKLES AND HANGERS ALREADY ASSEMBLED. RATED 6750KG. (springs are shot peened for extra strength)
6X UNIVERSAL 5/8" OFF ROAD FISH PLATES

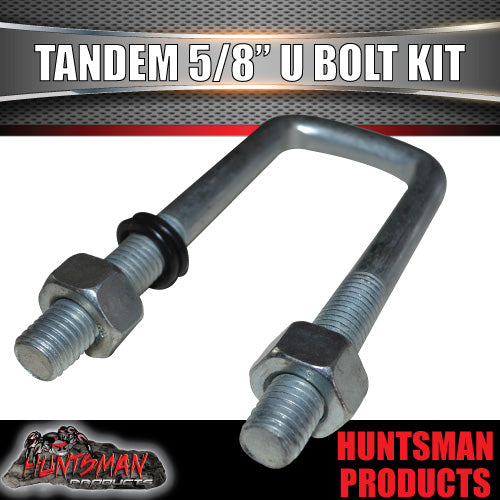

16 X 50MMX 170MM SQUARE 5/8" HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
6 X AXLE PADS

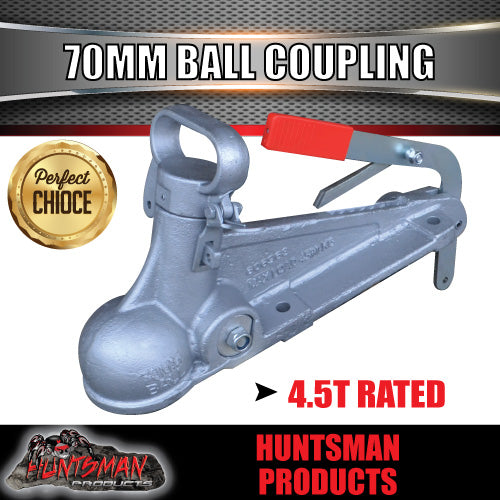

1X 4500KG ELECTRIC BALL COUPLING WITH HANDBRAKE LEVER (6000KG RING COUPLING AVAILABLE UPON REQUEST FOR NO EXTRA CHARGE)
COUPLING CTA APPROVAL NUMBER: CTA-061054
1 X 8 METRES HAND BRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
1X 10MM THICK 4 HOLE COUPLING PLATE
2X CABLE CLAMPS
4 X 12MM HIGH TENSILE BOLTS WITH NUTS AND WASHERS FOR COUPLING

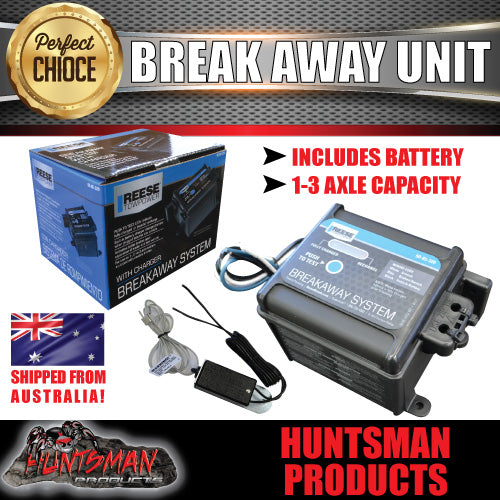

1X BRAKE AWAY UNIT
On ordering please supply your stud pattern and axle length

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE DROP AXLES APPROX 5 DAYS TO ENGINEER
JAPANESE MANUFACTURED BEARINGS $270 (HIGHLY RECOMMENDED)

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
