DIY 1000KG Boat Jetski Trailer Kit. Galvanised Axle, Decromat Eye to Eye springs. Axles 77" - 96"

1000KG DIY SINGLE AXLE BOAT TRAILER KIT
EYE TO EYE SPRINGS
AXLE LENGTHS 77" - 96" (for shorter axles SKU: 190911583239)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$20


AVAILABLE LENGTHS
77", 1955mm TIP TO TIP (1855M HUB FACE TO HUB FACE)
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)

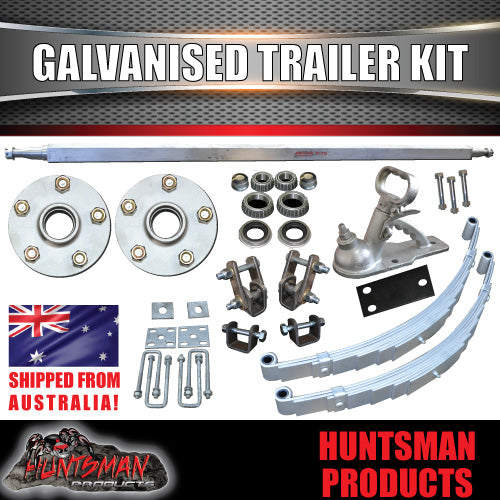

IN THIS KIT

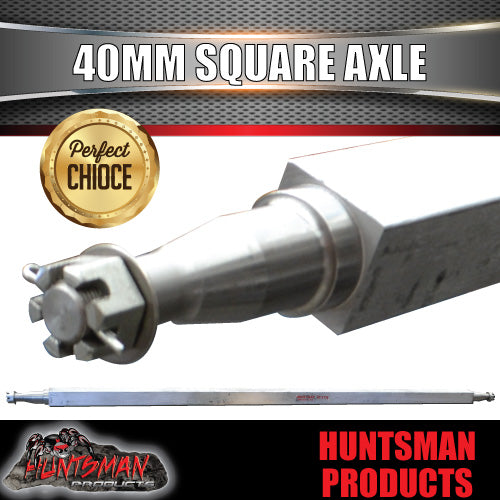

1X 40MM SQUARE GALVANISED SOLID AXLE ( AVAILABLE IN 60", 63", 64", 65", 66", 67", 68", 69", 70", 71", 73", 75", 77",78", 79", 81", 83", 85" 87", 89", 91", 93",94", 96" TIP TO TIP) IF YOUR NOT SURE ON YOUR AXLE LENGTH THEN PLEASE ASK US FOR ASSISTANCE.

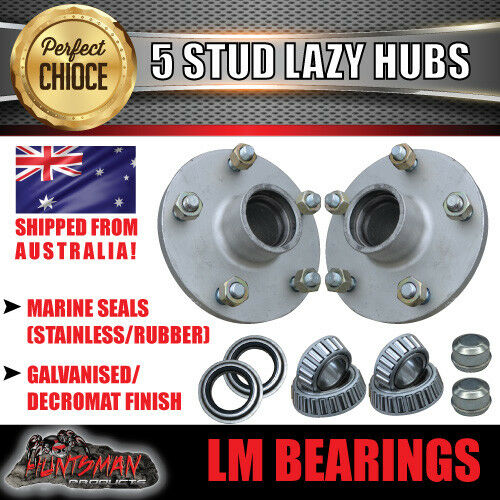

2X GALVANISED DACROMET HUBS. S.G CASTING (CUPS ALREADY INSERTED INTO DRUMS)
2X LM BEARING KITS INCLUDING DUST SEALS AND DUST CAPS (MARINE SEALS)
ALL WHEEL NUTS TO SUIT STUD PATTERN SUPPLIED

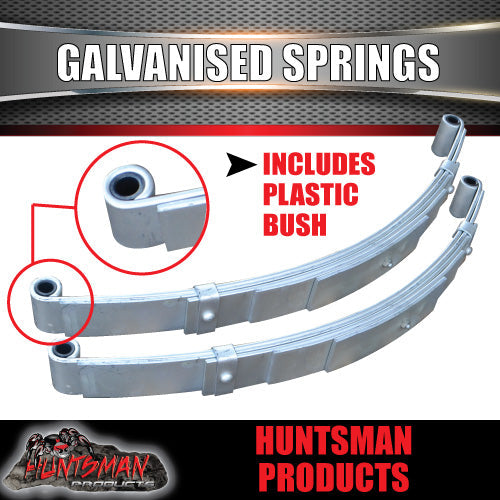

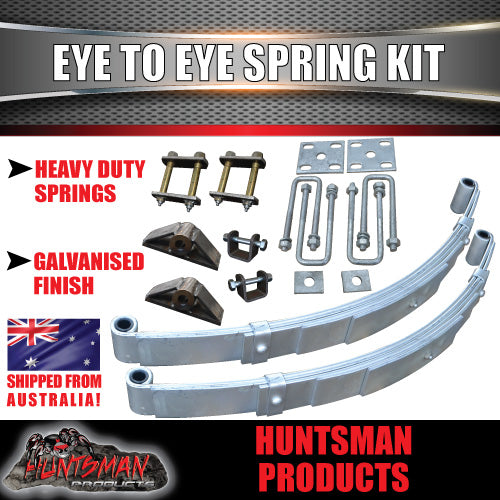

2X 5 LEAF DACROMET 60MM EYE TO EYE SPRINGS. RATED 1300KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

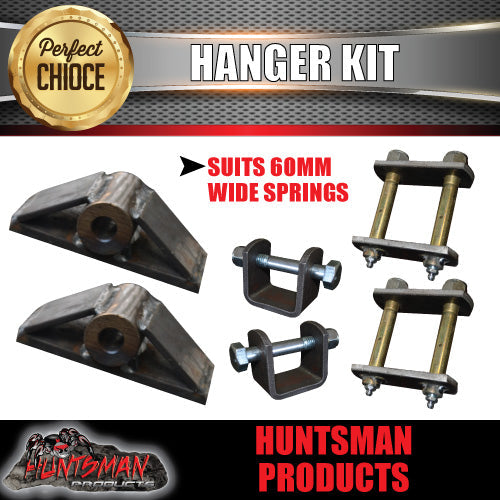

2X FRONT 60MM HANGERS
2X REAR 60MM SHACKLE HANGERS WITH DOUBLE STRENGTH WELDED PLATES
2X 9/16" FRONT HANGER BOLTS, NUTS AND WASHERS
2X DOUBLE 5/8" HIGH TENSILE GREASABLE REAR SHACKLE BOLTS
2X GALVANISED FISH PLATES

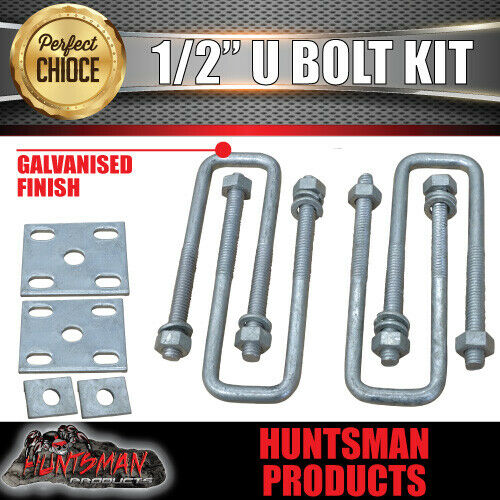

4X GALVANISED 40MM X 130MM 1/2" U BOLTS WITH NUTS AND WASHERS
2X GALVANISED AXLE PADS

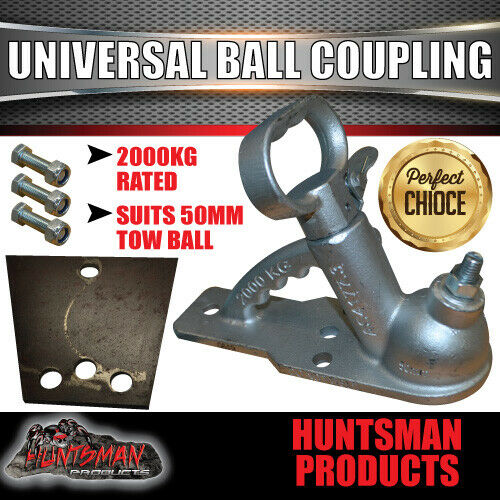

1X 2000KG GALVANISED 50MM BALL COUPLING
1X WELD ON COUPLING PLATE
3X HIGH TENSILE COUPLING BOLTS AND NYLOC NUTS
On ordering please supply your stud pattern and axle length?


EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295. DROP AXLE TAKES APPROX 5 BUSINESS DAYS
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
