DIY 1000KG Boat Jetski Trailer Kit. Galvanised Axle Decromat slipper springs. Axles 77" - 96"

1000KG DIY SINGLE AXLE BOAT TRAILER KIT
SLIPPER SPRINGS
AXLE LENGTHS 77" - 96" (for shorter axles ebay item:


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$20


AVAILABLE LENGTHS
77", 1955mm TIP TO TIP (1855M HUB FACE TO HUB FACE)
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)


AVAILABLE LENGTHS
63", 1600MM TIP TO TIP (1500MM HUB FACE TO HUB FACE)
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)

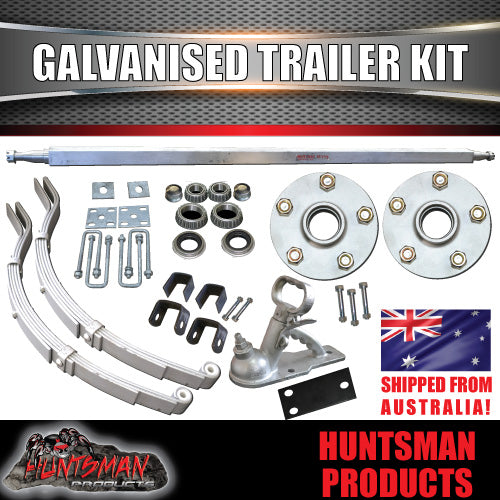

IN THIS KIT

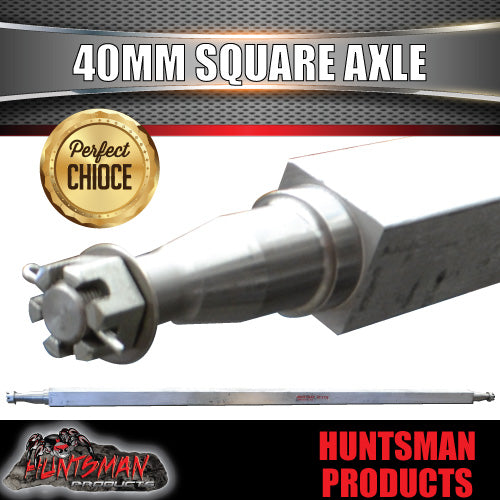

1X 40MM SQUARE GALVANISED SOLID AXLE ( AVAILABLE IN  63", 64", 65", 66", 67", 68", 69", 70", 71", 73", 75" TIP TO TIP) IF YOUR NOT SURE ON YOUR AXLE LENGTH THEN PLEASE ASK US FOR ASSISTANCE.

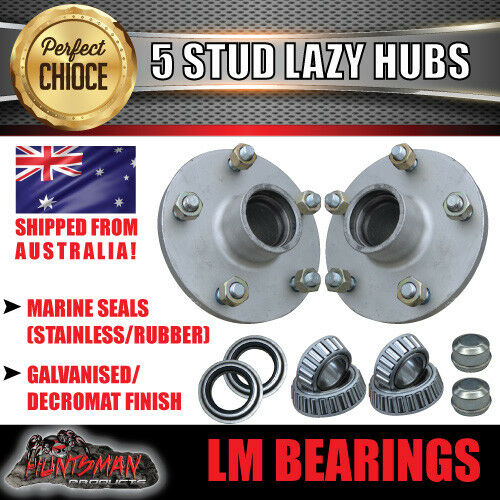

2X GALVANISED LAZY HUBS S.G CASTING (CUPS ALREADY INSERTED INTO DRUMS)
2X LM BEARING KITS INCLUDING DUST SEALS AND DUST CAPS (MARINE SEALS)
ALL WHEEL NUTS TO SUIT STUD PATTERN SUPPLIED

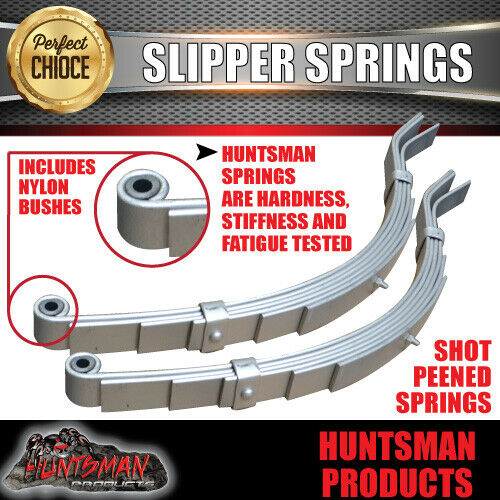

2X 5 LEAF DACROMET SLIPPER SPRINGS. RATED 1000KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

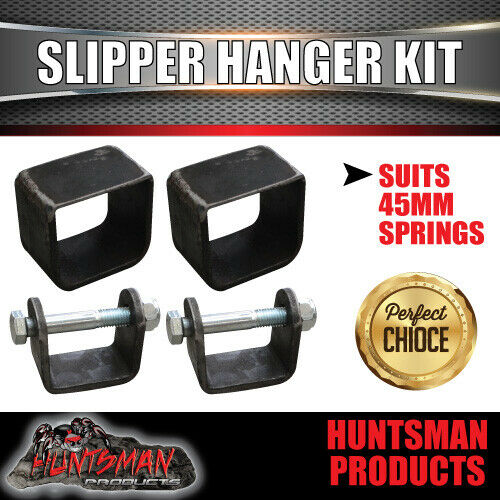

2X FRONT SLIPPER HANGERS
2X REAR SLIPPER HANGERS
2X 304 STAINLESS STEEL SLIPPER HANGER BOLTS WITH NUTS AND WASHERS
2X GALVANISED FISH PLATES

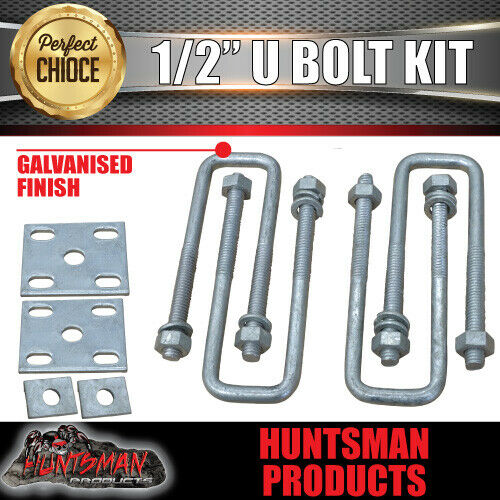

4X GALVANISED 40MM X 130MM 1/2" U BOLTS WITH NUTS AND WASHERS
2X GALVANISED AXLE PADS

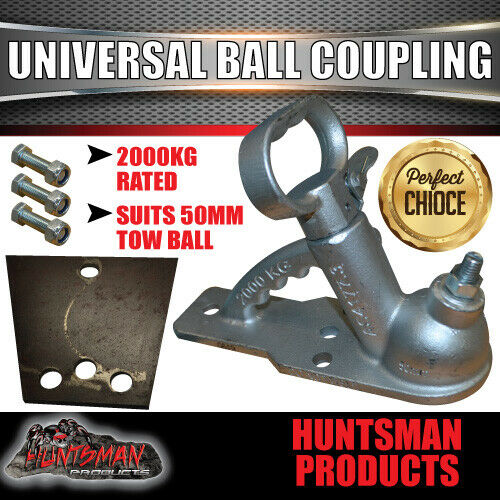

1X 2000KG GALVANISED 50MM BALL COUPLING,
1X WELD ON COUPLING PLATE
3X HIGH TENSILE COUPLING BOLTS AND NYLOC NUTS

On ordering please supply your axle length and stud pattern?


EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295. DROP AXLE TAKES APPROX 5 BUSINESS DAYS
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
